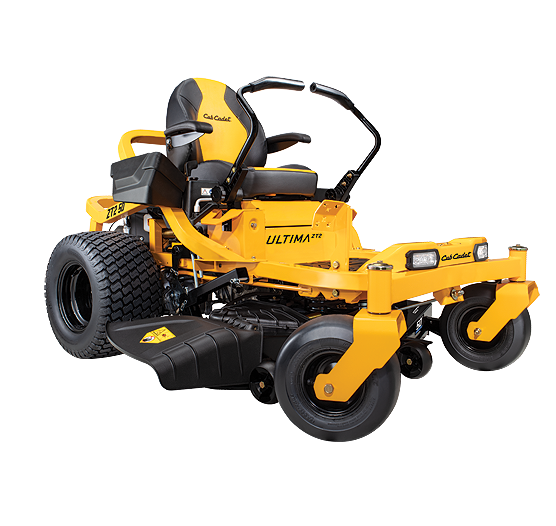

CUB CADET ULTIMA ZT2 50 17TIEAC2010

CUB CADET ULTIMA ZT2 50 17TIEAC2010

Product Number: 17TIEAC2010

Not Available Online, Please Contact Us.

Have Questions?

Our experts are here to answer your questions!

515-265-8889   Contact Us

Type: Zero-Turn
Brand: Cub Cadet

STORE PICKUP OR LOCAL DELIVERY ONLY


SET UP AND PREP FEES MAY APPLY
  • Premium 23 hp 726cc Kawasaki® FR 691 Series Twin-cylinder OHV Engine, Commercial-grade powerplant that meets your yard’s toughest demands.
  • Ideal for mowing slight rolling hills and several obstacles up to 5 acres
  • Open frame design and hinged/removable floor pan allow easy access to the deck and engine for quick and simple maintenance
  • A heavy-duty 11-gauge 50-in. fabricated triple-blade (high lift) deck



Engine



  • Engine Brand:   Kawasaki®
  • Engine Model: FR691V-ES05
  • Engine Displacement:  726cc
  • Engine Output:  23 HP
  • Fuel Tank Capacity:  3.5 Gallon fuel tank capacity to keep you mowing and minimize time loss for refueling needs
  • Engine Oil Capacity: 2.1 qt US
  • Charging System: 15 amp regulated
  • Choke: Separate Choke
  • Battery: Standard Lead-Acid  12v



Drive System
  • Transmission:  Dual Hydro-Gear™ ZT-2800™ w/ oil reservoir and filter
  • Forward Speed:  7.5 mph
  • Reverse Speed:  3.5 mph



Cutting Deck
  • Deck Cutting Width:  50" 3 blade
  • Deck Wash:  No
  • Deck Material:  11-gauge fabricated steel, reinforced flat top
  • Deck Engagement (PTO):  Electronic fingertip blade engagement PTO
  • Spindle Construction:  Sealed cast aluminum housing (maintenance-free)
  • Blade(s: ) 3
  • Cutting Height Range:  1'' - 4.5''
  • Deck Positions:  Foot pedal with spring assist creates the perfect cut | 15 Positions



Chassis
  • Frame:  High-strength, continuous square 2'' x 2'' tubular steel frame with fully E-Coat lower frame
  • Front Axle(s):  Fixed 2" x 2.5" fully welded tubular steel axle (e-coated)
  • Turning Radius:  Zero degrees
  • Front Tires:  13"x 6.5"-6" smooth tread front wheels pivot 180 degrees without turf damage
  • Rear Tires:  20”x12”-8" Turf Master premium rear tires offer excellent traction, minimize turfing and provide a better ride on uneven ground at higher speeds



Controls
  • Brakes:  Integrated parking brake system in lap bars for ease of use
  • Steering Control:  3-way adjustable ergonomic lap bar
  • Headlight(s):  Illuminating Dual-LED Headlights provide ultimate vision for mowing in low light conditions
  • Mow in Reverse: Standard
  • Hour Meter: yes



Comfort
  • Seat Type:  Automotive-inspired, ergonomic, fully adjustable premium 18'' high-back seat
  • Seat Suspension:  durable, advanced polymer seat suspension system optimizes comfort while reducing operators fatigue



Dimensions
  • Dimensions:  L/W/H 80'' x 61'' x 48''
  • Weight (approx.):  600 lbs.



Additional Specifications
  • Model Number: 17RIEACO010, 17RIEAC2010, 17TIEAC2010



Warranty
  • Warranty:  3-year unlimited-hour warranty
  • Frame Warranty:  Limited lifetime warranty on frame and fabricated deck shell.
