Cub Cadet ULTIMA ZT1 42 FAB 17YIEACE010
Product Number: 17YIEACE010
Not Available Online, Please Contact Us.
STORE PICKUP OR LOCAL DELIVERY ONLY
SET UP AND PREP FEES MAY APPLY
ZT1 42 FAB

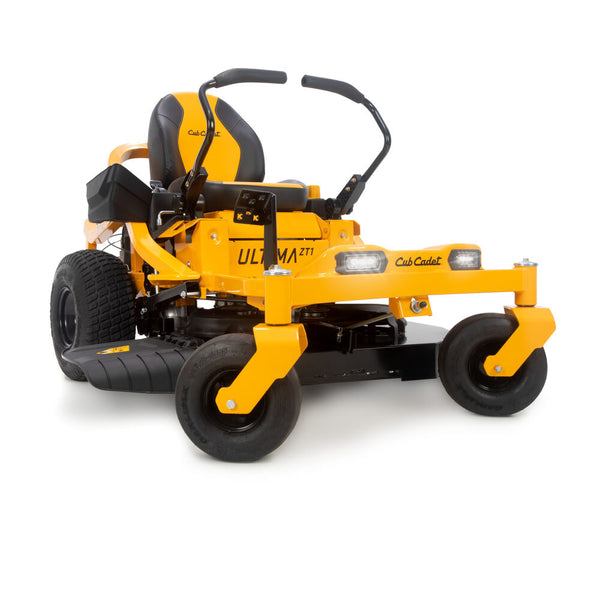

The Cub Cadet Ultima Series ZT1 42 42" 21.5 HP Zero-Turn Lawn Mower with AeroForce Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.
- A 21.5 HP 726cc Kawasaki FR651V twin-cylinder OHV engine delivers high-performance power to tackle your yard
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
- A continuous square 2" x 2" tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear
Engine
- Engine Brand: Kawasaki®
- Engine Model: FR Series
- Engine Model Number: 651V
- Engine Displacement: 726cc
- Engine Output: 21HP
- Starter Type: Electric
- Fuel Tank Capacity: 3.5 gal. US (13.25 L)
- Cylinders: Twin
- Engine Start: Ignition Key
- Engine Oil Capacity: 1.8 qts. US (1.7 L)
- Lubrication: Fully pressurized
- Charging System: 12 amp regulated
- Fuel Gauge: No
- Governor: Mechanical
- Choke: Separate Choke
- Air Filter: Dual element
- Oil Filter: Yes
- Fuel Delivery: Carburetor
Battery
- Battery: 210 CCA
- Battery Type: AGM (Absorbent Glass Mat)
- Battery Voltage: 12V
Drive System
- Transmission: Hydro-Gear EZT 2200
- Forward Speed: 7 MPH
- Reverse Speed: 3.5 MPH
- Drive System: Hydrostatic
Cutting Deck
- Deck Cutting Width: 42 in
- Deck Wash: No
- Deck Material: 11-gauge steel
- Deck Engagement: (PTO) Electric
- Deck Construction: Fabricated
- Blade(s): Two
- Deck Lift: Foot pedal with Dial Adjust
- Cutting Height Range: 1'' - 4.5''
- Anti-Scalping: Two gauge wheels
- Deck Positions: 15
Warranty
- Residential Warranty: 3-year unlimited hours
- Frame Warranty: Lifetime Limited
- Deck Shell Warranty: Lifetime Limited
Chassis
- Frame: 2'' x 2'' tubular steel
- Turning Radius: 0°
- ROPS: No
- Rear Tow Hitch: Yes
- Corrosion Protection: Yes
Controls
- Cruise Control: No
- Steering Control: Lap Bars
Comfort
- Seat Type: 20" high back
- Armrests: No
- Seat Adjustment: Knob
Wheels
- Rear Tires: 20”x 8”-8"
- Front Tires:11"x 6"-5"
Additional Specifications
- Hour Meter: No 490-900-C075
- Headlight(s): Dual-LED
- Cup Holder: Yes
- Operator Presence System: Yes
- Parking Brake: Lap Bar Integrated
- Model Number: 17YIEACEA10
- AIR FILTER: KM-11013-0752
- OIL FILTER: KM-49065-0721
- FUEL FILTER: KM-49019-0031
- SPARK PLUG: KM-BPR4ES
- DECK BELT : 754P06134 OR 490-501-C081
- DRIVE BELT: 954-04317A OR 490-501-C069
- BLADES: 742P05528
- XTREME BLADES: 742P05177A-X OR SET 490-110-C202
- IGNITION KEY: 925-1745A
- HOUR METER KIT: 490-900-C075
