Toro 72505 GrandStand® 52" 22 HP 726cc
Product Number: 72505
Not Available Online, Please Contact Us.
STORE PICKUP OR LOCAL DELIVERY ONLY

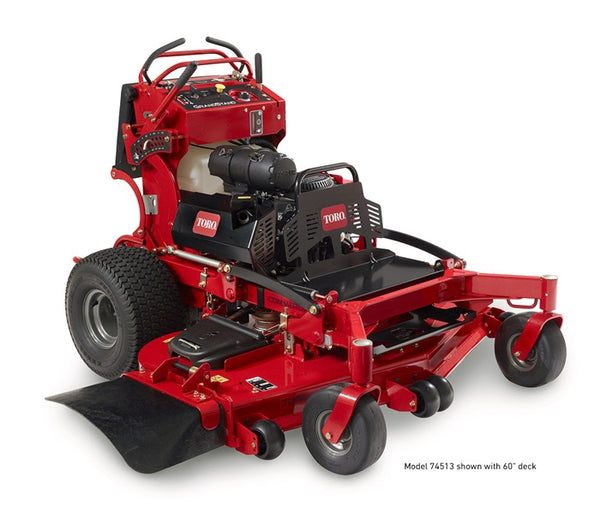

GrandStand® 52" 22 HP 726cc (72505)
- Improve productivity with easy access on and off the machine with up to 10.5 gallons of fuel capacity to mow longer with fewer stops.
- Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
- Toro's foldable operator platform instantly converts the GrandStand to a walk-behind. It easily lowers back down when its time to ride – saving time, money and trailer space by eliminating the need to switch mowers.
- Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
-
Engine
22 hp Kawasak FX 726cc -
Fuel Capacity
Gas/10.5 gal -
Cutting Width
52" -
Adjustable Discharge Baffle
Standard, tools-free -
Air Filter
Heavy-Duty Canister Air Cleaner -
Blade Tip Speed
18,500+ ft/min -
Blade Type
.25" heat-treated steel -
Carrier Frame
3" x 1.5" x 12 gauge -
Caster Tires
11" x 4" – 5" Flat-Free Semi-Pneumatic -
Clutch
Electromagnetic -
Deck Design
80-grade 7-gauge 52" TURBO FORCE® w/bull-nose bumper -
Discharge Chute
Rubber -
Drive System
Unitized Pumps (10cc/rev) & Wheel Motors (10 cir) -
Drive Tires
20" X 10.5" – 8" -
Engine Horsepower
22 hp -
Engine Displacement
726cc -
Ground Speed
Up to 10 mph forward -
Height of Cut
1.5" – 5.0" -
Hydraulic Fluid
Premium synthetic -
Comfort Platform
Foldable Operator Platform with Suspension -
Spindle Bearings
Greaseless ball bearings -
Spindle Housing
9" diameter cast aluminum -
Steering Controls
Twin lever -
Weight
898 lbs.
Features
25% Faster Speeds
The 10 mph transport speed gets you to your next destination 25% faster.*
Smaller Footprint
With the platform folded, the small footprint allows you to transport more products on the trailer.
Better Visibility
Exceptional operator visibility leads to less property damage and higher quality work.
Easier Maintenance
Access to both sides of the engine, hydros and controls with the easy removal of the fuel tank.
Less Maintenance Needed
The elimination of hydraulic hoses, reduced parts, no routine greasing and simplified design, save you time.
Comfortable Ride
The platform has self-adjusting suspension, a larger open area to move around, and sloped sides for a more secure stance when cutting sloped terrain.
Ultimate Cutting Deck
Our exclusive TURBO FORCE cutting deck is built to withstand the extreme conditions of long, tough days on the job. It features a durable bull-nose bumper, high-strength blades and the industries toughtest spindle assemblies.
Extra Large Fuel Tank
10.5 gallon fuel tank requires less filling and more time working. Transparent tank make it easy to gauge the fuel level.
Traction On Hills
The low center of gravity of stand-on mowers hug hills and slopes. Operators can easily shift their weight as needed to enhance performance.
Smarter design in a bull-nose bumper.
7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.
A Flat Crisp Cut with Precision Blades
(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
Patented Adjustable Baffle
Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.
Cast Aluminum Spindle
Cools quickly for enhanced durability and performance.
