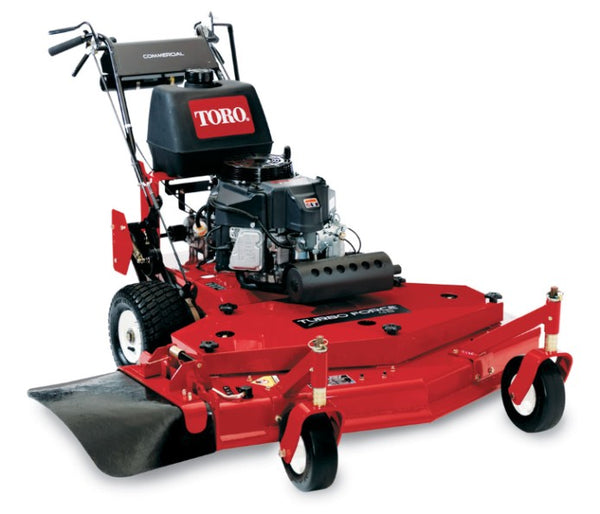

Toro 39634 36" Fixed Deck Gear Drive Pistol Grip
Product Number: 39634
Not Available Online, Please Contact Us.
36" Fixed Deck Gear Drive Pistol Grip
Fixed Deck Gear Drive
- 36" TURBO FORCE 7-gauge deck w/patented adjustable baffle
- 14.5 HP Kawasaki® FS481V 603cc
- Massive 9-3/8" (24 cm) diameter spindles
- Large 13" x 6.5" Drive Tires
14.5 HP* Kawasaki® FS481V 603cc
5 gallons
1" to 4-1/4" in 1/8" increments
2
Recoil
5-Speed Transmission
Side-discharge standard
2-Stage Air Cleaner
Standard
18,000 ft/min
6" Band Brakes
Model 39634
9" x 3.50-4" Flat-free
36" (91 cm) TURBO FORCE
High-performance 5/16" rubber
13" x 6.50-6"
6.2 mph fwd; reverse assist
41"
14.5 hp
80"
Cast iron with 9-3/8" base
Pistol Grips
13" x 6.5"
37.1" with chute up
462 lbs
Pistol Grip Control System
The individual handles make it easier to control tracking long straight lines. The release to go interlock, reduces operator fatigue.
Exclusive TURBO FORCE Deck
High-capacity 7/10 guage TURBO FORCE deck delivers unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Easily handles the most demanding conditions and resists damage from impacts and abrasion.
Rubber Discharge Chute
High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.
Patented Adjustable Baffle
Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.
Smarter design in a bull-nose bumper.
7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.
Rugged Spindle Assembly
Rigorously tested to ensure that it can survive impacts that would destroy lesser spindles. The cast iron housing, with a massive 9-3/8" (23.8 cm) diameter base, absorbs impact loads and distributes them across a broader area of the robust deck shell. Built with maintenance-free sealed ball bearings.
Extended Life Drive System
Extended life drive system with Husqvarna Peerless 700 series transmission, featuring a 9-spline drive coupler.
A Flat Crisp Cut with Precision Blades
(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
