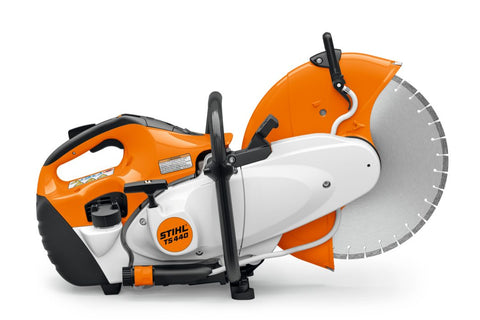

STIHL TS 440 Cutquik® 14" Cut-Off Machine

The STIHL TS 440 is a professional gasoline-powered cut-off machine engineered for demanding construction work and challenging cuts where access is limited.

Designed for 14-inch cutting wheels, the TS 440 combines 4.3 BHP, a maximum cutting depth of approximately 4.9 inches, Electronic Water Control, and STIHL Quickstop® wheel-brake technology.

Its extended wheel-guard adjustment range makes the STIHL TS 440 cut-off saw especially useful for difficult cuts near walls, corners, and in-ground pipe where conventional cut-off machines may have limited access.

STIHL TS 440 Specifications

Specification	Details
Brand	STIHL
Model	TS 440
Product Type	Gasoline Cut-Off Machine
Displacement	4.1 in³
Engine Power	4.3 BHP
Weight Without Fuel	24.5 lbs.
Cutting Wheel Diameter	13.8 in.
Cutting Wheel Class	14 in.
Maximum Cutting Depth	4.9 in.
Length With Cutting Wheel	28.6 in.
Intended Use	Professional construction and limited-access cutting

Built for Limited-Access Cutting

The STIHL TS 440 Cutquik® is designed for applications where conventional cut-off machines may have difficulty reaching the required cutting position.

Its extended guard-adjustment range provides additional access for challenging cuts such as:

• Bottom portions of walls

• Corners

• In-ground pipe

• Underside pipe cuts

• Confined construction areas

• General concrete and construction cutting

This added flexibility makes the TS 440 particularly useful for professional contractors who regularly work in difficult cutting positions.

STIHL Quickstop® Wheel Brake

A defining feature of the TS 440 is the sensor-activated STIHL Quickstop® wheel-brake system.

The technology is designed to stop cutting-wheel rotation in fractions of a second if kickback is detected.

This system allows STIHL to provide an extended wheel-guard adjustment range while helping address the risks associated with exposing more of the cutting wheel during specialized cuts.

The TS 440 was developed specifically around this combination of increased cutting access and wheel-brake technology.

Electronic Water Control

The Electronic Water Control system allows the operator to adjust water flow while cutting.

The system also stops water flow when the machine is at idle.

Benefits include:

• Convenient water-flow adjustment

• Reduced unnecessary water use at idle

• Easier wet-cutting control

• Operator access to water controls during operation

The machine also includes a water connection with shut-off valve and quick connector.

STIHL X2 Air Filtration System

The X2 Air Filtration System is designed for demanding, dusty cutting environments.

Outside air enters the system in a swirling motion that removes a large portion of dust before the air reaches the primary filtration stages.

The pre-cleaned air then passes through the primary and secondary filters before entering the engine.

According to STIHL's system description, the X2 filtration system provides up to 99.96% cleaning efficiency and can significantly extend filter service intervals depending on cutting conditions.

IntelliCarb™ Compensating Carburetor

The TS 440 features STIHL's IntelliCarb™ Compensating Carburetor.

As the air filter becomes restricted, IntelliCarb is designed to automatically adjust the air-to-fuel ratio to help maintain proper engine RPM.

The system uses air from the clean side of the air filter to regulate fuel flow as filtration conditions change.

This helps the machine compensate for changing airflow during operation.

STIHL ElastoStart™

The STIHL ElastoStart™ starter handle includes a built-in shock-absorbing element designed to reduce the peak forces felt while pulling the starter cord.

This helps smooth the compression forces experienced during starting and can make repeated starts more comfortable.

Anti-Vibration System

STIHL's anti-vibration system is designed to reduce the amount of engine vibration transmitted to the operator.

For professionals using a cut-off machine for extended periods, reduced vibration can improve comfort and help reduce operator fatigue.

Ergonomic Top Handle

The TS 440 uses an ergonomic top-handle design intended to provide a comfortable grip in a variety of working positions.

This is particularly useful when making difficult cuts that require the machine to be held at different angles.

Additional TS 440 Features

Key features include:

• 14" cutting-wheel capability

• 4.3 BHP engine

• 4.9" maximum cutting depth

• STIHL Quickstop® wheel brake

• Extended wheel-guard adjustment range

• Electronic Water Control

• X2 Air Filtration System

• IntelliCarb™ compensating carburetor

• STIHL ElastoStart™

• Anti-vibration system

• Ergonomic top handle

• Water connection with shut-off valve

• Quick-connect water fitting

• Conveniently grouped starting controls

What Is the STIHL TS 440 Used For?

The STIHL TS 440 is designed for professional cutting applications where both power and access are important.

Typical applications include:

• Concrete cutting

• Masonry work

• Construction cutting

• Pipe cutting

• Limited-access cuts

• Wall cuts

• Corner cuts

• Utility work

• Professional job-site cutting

Its extended guard range makes it particularly useful for cutting situations where access around the material is restricted.

TS 440 vs. a Standard Cut-Off Machine

The biggest distinction of the STIHL TS 440 is its ability to provide greater cutting-wheel access.

A conventional cut-off machine generally keeps more of the cutting wheel covered by the guard.

The TS 440 combines an extended guard-adjustment range with STIHL Quickstop® wheel-brake technology, giving professional operators greater access for certain specialized cuts.

If your work frequently involves pipe, corners, wall bases, or other difficult locations, this feature is one of the main reasons to consider the TS 440.

Why Choose the STIHL TS 440?

The TS 440 combines professional cutting power with features designed specifically for difficult construction applications.

Benefits include:

• Strong professional cutting performance

• 14" cutting-wheel capacity

• Up to 4.9" cutting depth

• Greater access for difficult cuts

• Quickstop® wheel-brake technology

• Electronic water-flow control

• Advanced air filtration

• Anti-vibration technology

• Professional STIHL construction

Frequently Asked Questions

What is the STIHL TS 440?

The STIHL TS 440 is a professional gasoline-powered cut-off machine designed for 14-inch cutting wheels and demanding construction applications.

Is the STIHL TS 440 a cut-off saw?

Yes. Shoppers commonly refer to the TS 440 as a STIHL cut-off saw, concrete saw, or Cutquik®. STIHL describes the product as a gasoline cut-off machine.

What size blade or cutting wheel does the STIHL TS 440 use?

The TS 440 is designed for the 14-inch cutting-wheel class. The listed cutting-wheel diameter is approximately 13.8 inches.

How deep can the STIHL TS 440 cut?

The listed maximum cutting depth is approximately 4.9 inches.

How much power does the STIHL TS 440 have?

The TS 440 is rated at 4.3 BHP.

How much does the STIHL TS 440 weigh?

The listed machine weight without fuel is approximately 24.5 lbs.

What is special about the STIHL TS 440?

One of its most important features is the combination of an extended wheel-guard adjustment range and STIHL Quickstop® wheel-brake technology, which provides additional access for challenging cuts.

Does the STIHL TS 440 have water control?

Yes. It includes Electronic Water Control that allows the operator to adjust water flow while cutting and stops water flow when the machine is at idle.

What is the STIHL TS 440 Quickstop® wheel brake?

It is a sensor-activated system designed to stop cutting-wheel rotation rapidly if kickback is detected.

What is the STIHL TS 440 price?

Check the product options on this page for the current STIHL TS 440 price and availability.

Is the TS 440 good for concrete cutting?

The TS 440 is designed for professional construction cutting and is suited to compatible cutting-wheel applications involving concrete and other construction materials.

Shop the STIHL TS 440

Choose the STIHL TS 440 Cutquik® 14" cut-off machine when you need professional cutting power combined with greater access for difficult construction cuts.

Check the current product listing above for STIHL TS 440 price, availability, and purchasing options.

Product Image Notice: Product images may be representative. Actual equipment appearance and specific component attachment may vary while providing the same intended functionality.
