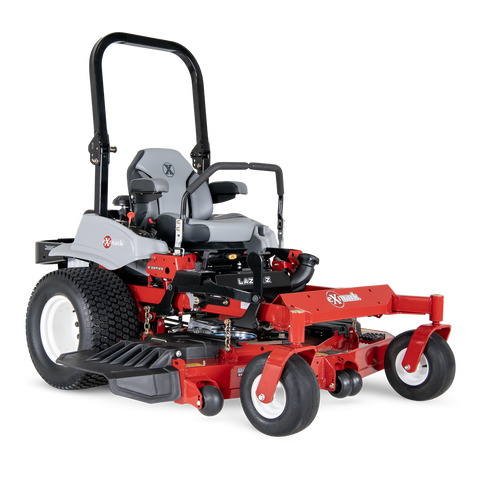

The Exmark Lazer Z E-Series 60-Inch Zero-Turn Mower is built to deliver dependable commercial mowing performance with the power, durability, and comfort professionals demand. Equipped with a 726cc Kawasaki FX730V V-Twin engine and Hydro-Gear hydrostatic drive system, this mower provides smooth handling and infinitely variable speeds up to 11 mph for efficient operation on large properties. Its 60-inch UltraCut Series 4 floating deck features rugged welded steel construction, adjustable cutting heights from 1.5" to 5.5", and side discharge with optional mulching or bagging capabilities for a clean, professional-quality cut.
For enhanced operator comfort and productivity, the Lazer Z E-Series includes adjustable hydraulic steering controls, a deluxe suspension seat with flip-up armrests, foot-operated deck lift, and maintenance-free blade spindles. Additional features such as a foldable ROPS with seat belt, 9.5-gallon fuel tank, engine hour meter, and heavy-duty tubular steel frame make it a reliable choice for demanding commercial landscaping applications. Backed by a 5-year/1,250-hour warranty, the Lazer Z E-Series is designed for long-lasting performance season after season.
Equipment-
Width / Cutting Deck: 60"
Drive: Hydro-Drive
Starter: Electric
Steering Control: Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Caster Forks: .50" thick caster yoke arms.
Front Caster Tires: 13 x 6.5-6, smooth tread, pneumatic. Sealed ball bearings.
Drive Tires: 24 x 12-12, 4 ply Super Turf TL
Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
Parking Brake: Lever actuated internal wet disc brake
Tractor Frame: Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Electrical: 12-volt battery with 15-amp alternator.
Standard Features: Engine hour meter and cup holder
Seat: Deluxe suspension seat, foam flip-up armrests, and integral safety switch. Adjustment: Fore and aft from operator's position.
Transmission Speeds: Infinitely Variable
Power Components-
Engine Brand: Kawasaki
Transmission Brand: Hydro-Gear
Engine Model: FX730V
Engine Displacement: 726cc
Engine Series: V-Twin
Fuel System: Carbureted
Speed: Infinitely variable speed selection from 0–11.0 mph forward, 0–6.0 mph reverse.
Transmission: Hydrostatic
Engine Spec: FX730V-FS26-R
Engine Speed: 3700 RPM
Air Filter: Heavy-duty canister air filtration system
Fuel Capacity: 9.5-gallon single fuel tank with single fill location
Drive Description: Dual Hydro-Gear ZT-4400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Fuel Type: Gas Carbureted
PTO Engagement: MagStop Electromagnetic 175 ft-lb clutch with spot brake
Drive Wheel Release: Allows unit movement without engine running.
Fuel Indicator: Mechanical float
Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Carb Compliant: No
ROPS: 2-post foldable ROPS standard with seat belt and latch.
Deck-
Deck Style: Floating Deck
Deck Style Description: Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction: 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt, and 7-gauge reinforcement plate welded to spindle mounting locations for improved strength.
Cutting Heights: 1.5" to 5.5" in 0.25" increments
Blade Tip Speed: Approximately 18,500 fpm
Blades: 3 blades at 20.50" length
Warranty: 5-Year 1250hr (no hour limit in the first 2 years)
