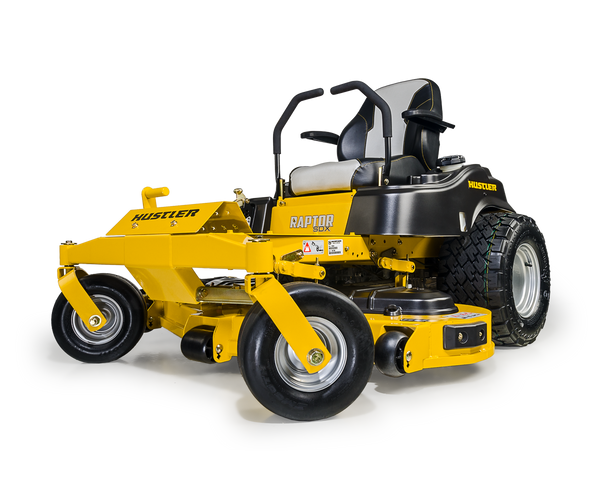

Hustler Raptor SDX 54 938548

Product Number: 938548

Not Available Online, Please Contact Us.

Have Questions?

Our experts are here to answer your questions!

The Raptor SDX is the biggest, strongest, toughest mower in the Raptor Family. A commercial-quality mower built for the toughest residential yards up to 3 acres in size. 10-gauge heavy duty steel decks provide unmatched durability, at sizes up to 60-inches. The SDX features everything you love about the Raptor SD, and then some. With massive 22-inch Big Bite Rear tires for unsurpassed traction. A premium bolstered seat with internal suspension for the ultimate in comfort. And speeds up to 7 miles an hour.

WARRANTY:

RESIDENTIAL 3 YEAR 300 HOUR

COMMERCIAL 1YEAR 300 HOUR

Engine


Manufacturer	Kawasaki
HP (Per SAE J 1995.)	23HP
Displacement	726cc
Cooling	Air Cooled
Air Cleaner	Single Stage
Engine Warranty	3 Year

Drive System


Type	Dual Hydrostatic
Pumps	n/a
Wheel Motors	n/a
Hydraulic Lines	n/a
Hydraulic Cooling	n/a
Reservoir Capacity	n/a
Transmission	Hydro-Gear ZT3100
Speed	Up to 7 mph
Parking Brakes	Patented Automatic

Deck


Cutting Width	54"
Cutting Heights	1.5"-4.5"
Deck Lift	Foot Operated
Depth	5"
Blades	3
Blade Length	3 - 18.50" x 2.50" x .20"
Blade Tip Speed	18,900 fpm
Spindles	Aluminum w/ 1.0" Shafts and Sealed Ball Bearings
Deck Belts	n/a
Drive	Electric PTO Clutch
Construction	10ga. Fabricated
Spindle Mounts	11 ga. Stamped Spindle Cans
Impact/Trim Areas	3/8" x 1" Steel Bar

Construction


Frame	3.25" x 1.5" x .179" Steel
Deck Carrier Frame	n/a
Engine/Transmission Frame	n/a
Engine Plate	n/a
Front Axle	Fabricated w/ Sealed Ball Bearings
Front Caster Wheels	Commercial Duty Steel Roller Bearings, greasable
Front Caster Forks	Fabricated 3/8" Steel
Operator Platform	n/a

General


Seat	Adjustable premium bolsteredseat with armrests. Internal suspension.
Fuel Capacity	3 gal.
Cup Holder	Yes
Front Tire	13 x 6.5 - 6
Drive Tire	22 x 11 - 10 Big Bite

Productivity


Acres per Hour	3.27

Dimensions


Weight	666 lbs.
Height	42"
Height w/ ROPS Up	n/a
Height w/ ROPS Folded	n/a
Length	73"
Width	n/a
Width w/ Chute Up	55"
Tire Width	46"
