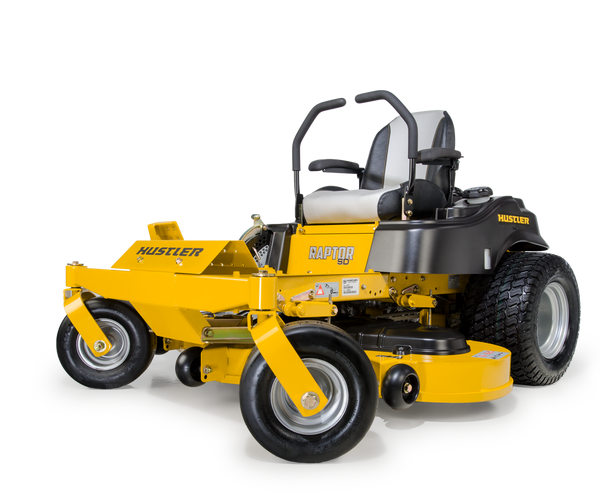

Hustler Raptor SD 60 938696

Hustler Raptor SD 60 938696

Product Number: 938696

Not Available Online, Please Contact Us.

Have Questions?

Our experts are here to answer your questions!

515-265-8889   Contact Us

Type: Non-Current Models
Brand: Hustler

The Raptor® SD is a residential zero-turn perfect for bigger yards. It features deep, heavy-duty welded-steel decks up to 60” in size and large 20” drive tires for a smooth ride across various turf conditions and rugged terrain.

WARRANTY:

3 YEAR 300 HOUR

Engine
Manufacturer Kawasaki FR Series
HP (Per SAE J 1995.) 26HP
Displacement 726cc
Cooling Air Cooled
Air Cleaner Single Stage
Engine Warranty 3 Year
Drive System
Type Dual Hydrostatic
Pumps n/a
Wheel Motors n/a
Hydraulic Lines n/a
Hydraulic Cooling n/a
Reservoir Capacity n/a
Transmission Hydro-Gear ZT2800
Speed Up to 7.5 mph
Parking Brakes Patented Automatic
Decks
Cutting Width 60"
Cutting Heights 1.5"-4.5"
Deck Lift Foot Operated
Depth 4.5"
Blades 3
Blade Length 3 - 20.50" x 2.50" x .20"
Blade Tip Speed 18,400 fpm
Spindles Aluminum w/ 1.0" Shafts and Double Lip Sealed Ball Bearings
Deck Belts n/a
Drive Electric PTO Clutch
Construction 11ga. Fabricated
Spindle Mounts Reinforced 7ga.
Impact/Trim Areas 3/8" x 1" Steel Bar
Construction
Frame 3.25" x 1.5" x .120" Steel
Deck Carrier Frame n/a
Engine/Transmission Frame n/a
Engine Plate n/a
Front Axle Fabricated w/ Sealed Ball Bearings
Front Caster Wheels Commercial Duty Steel Roller Bearings, greasable
Front Caster Forks Fabricated 3/8" Steel
Operator Platform n/a
General
Seat Adjustable premium seat w/ armrests.
Fuel Capacity 3 gal.
Cup Holder Yes
Front Tire 13 x 6.5 - 6
Drive Tire 20 x 12 - 10
Productivity
Acres per Hour 3.64
Dimensions
Weight 675 lbs.
Height 43"
Height w/ ROPS Up n/a
Height w/ ROPS Folded n/a
Length 73"
Width n/a
Width w/ Chute Up 61"
Tire Width 46"
