Type: Non-Current Models
Brand: Ferris

 ********NO LONGER AVAILABLE********

ISX™ 2200 Zero Turn Mowers

THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF



Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® ZT-4400™ Transaxle drive system and travel speeds up to 10 mph, the ISX™ 2200 is engineered to increase efficiency and operator comfort.



Features

Forefront™ Suspension System



The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.



Ride-On Mower Warranties



Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

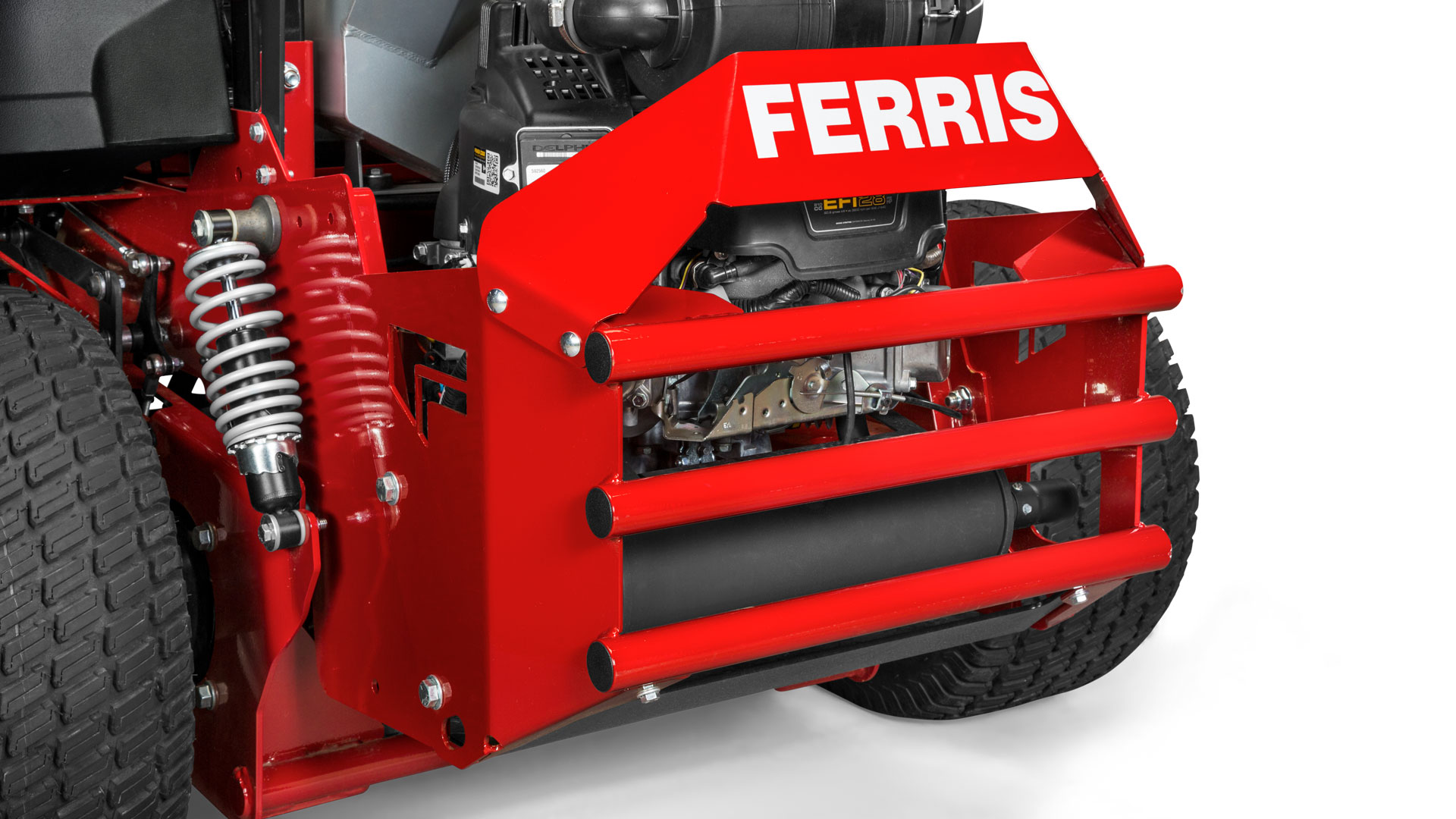

Redesigned Rear Bumper



The redesigned rear bumper provides additional ground clearance for moving over curbs and loading trailers. Higher side walls protect the engine while maintaining easy service access.

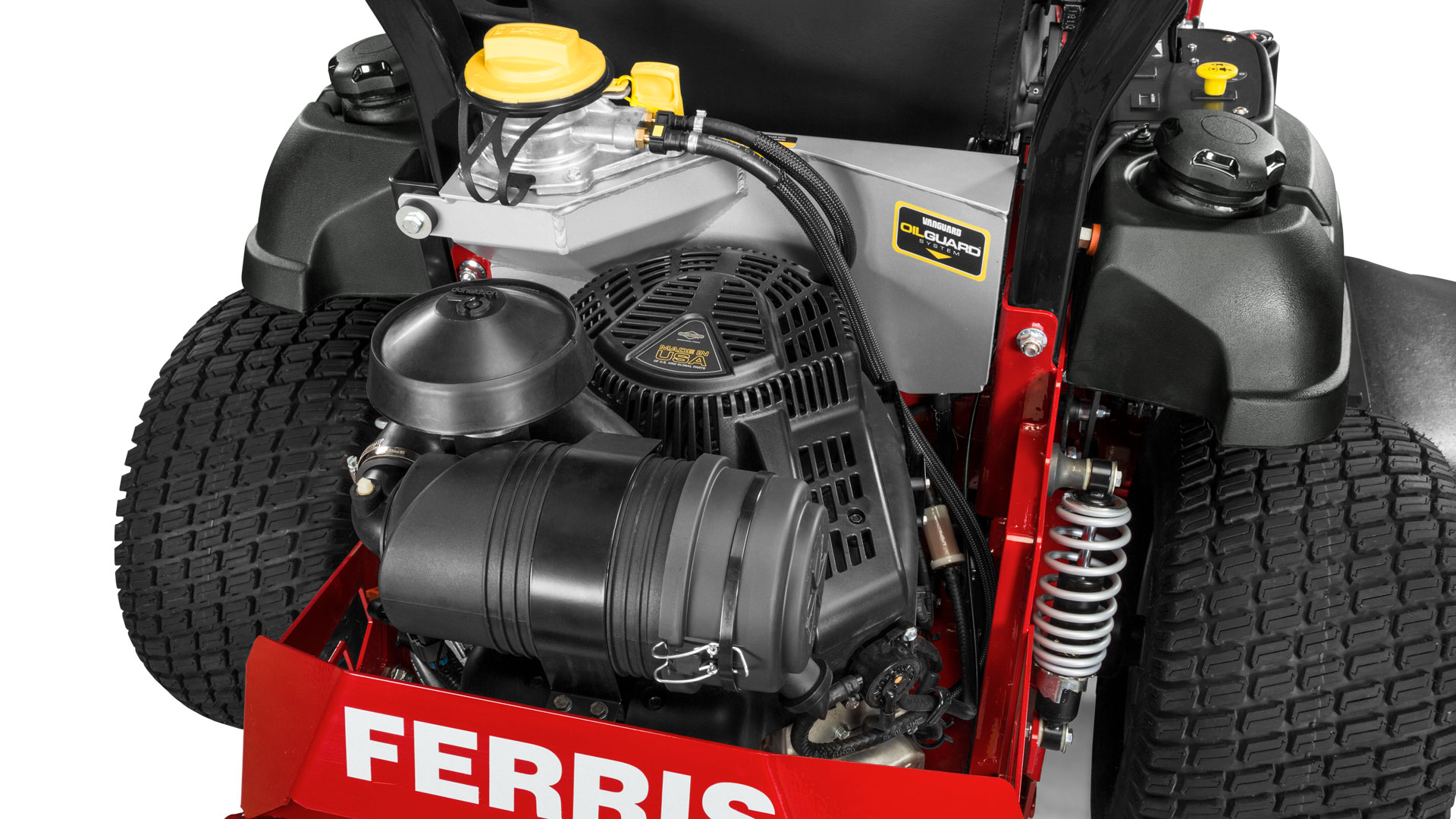

500 Hour Oil Change



Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**



Drive System



Dual, commercial Hydro-Gear ZT-4400 transaxles, with 8.3-inch cooling fans, deliver unmatched power and durability.



Adjustable Cut Height



Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".



Specifications


Model Number
5901996
Engine Brand
Kawasaki® FT730V EFI
Engine Power Rating *
26 gross hp
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Cast-iron greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 12-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
82.5
Overall Width (in) Deflector Down/Deflector Up
78 / 61.5
Dry Weight (lbs)
1295
Seat Package
Premium high-back Suspension Seat with arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
