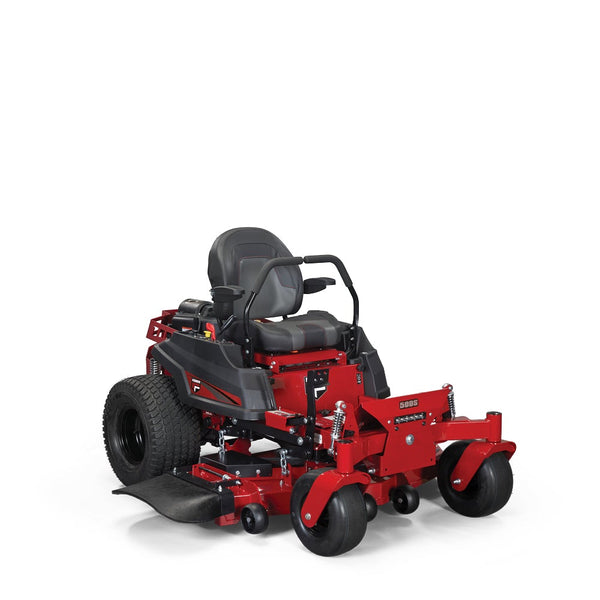

The 500S zero turn mower is packed with essential features to deliver reliable productivity and performance. The differentiating 4 point suspension saves your body from the pains of continuous mowing. Plus, commercial-like performance and extras like the LED headlight make for a confident mowing experience season after season.

Features Patented Suspension The 500S comes equipped with swingarm rear and pivoting front coil-over shocks meaning less concern for uneven ground, and more focus on getting work done.   Convenient Components Confidently mow day or dusk with the standard integrated LED headlight, premium mid-back seat, and improved engine protection. Fabricated Mowing Deck The fabricated 10-gauge steel mowing deck is durable and provides reliable cutting performance in a variety of conditions. Hydro-Gear Transaxles Dual-commercial transaxles with 7" cooling fans repel debris and provide consistent power. Confident Traction 22-inch rear-drive tires and large front casters ensure wheel contact for dependable traction in varying conditions.

Specifications Engine Brand Kawasaki® FR730V Engine Power Rating * 24 Displacement (cc) 726 PTO Electric Cylinders 2 Starter Electric Fuel Type Gasoline Fuel Tank Capacity (gal) 3 Hour Meter/Instrumentation Dual-function hour meter, fuel level gauge in tank Cutting Width (in) 61 Cutting Height (in) 1.5 - 4.5 Spindles Aluminum Greaseable Suspension Front and rear adjustable dual coil-over shocks Transmission Dual Hydro-Gear® ZT-3100® transaxles with 7" cooling fans Deck Construction Fabricated 10-gauge Drive Axles (in) 1 Caster Tires (in) 13 X 6.5-6 Drive Tires (in) 22 X 11 - 10 Ground Speed-Fwd (mph) 0-8.5 Ground Speed-Rev (mph) 0-4 Overall Length (in) 80 Overall Width (in) Deflector Down/Deflector Up 74 Dry Weight (lbs) 860 Seat Package Mid-back seat with arm rests Certified Roll-over Protection System N/A Controls / Safety Group Seat activated engine kill, clutch Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls switch Parking Brake / Safety Circuit Hand operated Internal transaxle brake Warranty (Engine) † 3-Year Manufacturer’s Limited Warranty (36 month) Warranty (Balance of Machine) † Consumer Warranty (Product), 3-Years / Commercial Warranty (Product), 90-Days
