Exmark 135-7347 Hydro Fan and Pulley Kit | Radius Zero-Turn Mowers

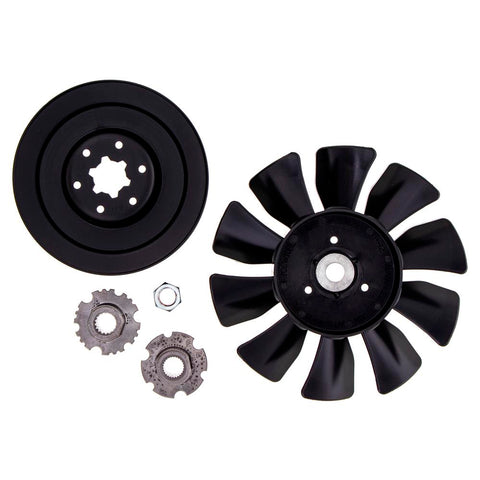

Exmark 135-7347 Hydro Fan and Pulley Kit

The Exmark 135-7347 Hydro Fan and Pulley Kit is an OEM replacement kit used on select Exmark Radius zero-turn mower applications. This kit is used in the hydro drive / transmission cooling and pulley area where part number 135-7347 is listed in the Exmark parts diagram.

This part is commonly searched as Exmark 135-7347, Exmark hydro fan kit, Exmark pulley kit, Radius hydro fan and pulley kit, 135-7347 fan pulley kit, and Exmark Radius hydro pulley kit.

Always verify your exact Radius model number, serial number, hydro drive assembly, pulley location, fan location, belt routing, and parts diagram before ordering. Do not order by mower series, deck size, or appearance alone because hydro drive components can vary by model and serial range.

Product Details

Key Features

• OEM Exmark hydro fan and pulley kit
• Part number 135-7347
• Used on select Exmark Radius mower applications
• Helps service the hydro drive fan and pulley area where this kit is specified
• Factory-style replacement when listed in your Exmark parts diagram
• Important to verify model, serial range, belt routing, fan location, and pulley setup before ordering

Fits Select Exmark Radius RAE Models

The following fitment is based on the supplied where-used information. Always confirm your exact model number, serial number, and parts manual before ordering.

Fits Select Exmark Radius RAS Models

Fits Select Exmark Radius RZE Models

Fits Select Exmark Radius RZS Models

Important Fitment Notes

• This listing is for Exmark OEM part number 135-7347
• Product description: Hydro Fan and Pulley Kit
• Verify your exact Radius model number and serial number before ordering
• Confirm your Exmark parts diagram lists 135-7347 for the hydro fan and pulley location
• Check hydro drive assembly, belt routing, fan orientation, pulley style, shaft/hub fit, keyway, mounting hardware, and clearance
• Do not order by mower family, deck size, or appearance alone
• Belt, transaxle, hydro pump, fan guard, additional pulleys, keys, bolts, washers, and related hardware are not included unless shown or stated

When to Replace a Hydro Fan and Pulley Kit

• Hydro fan blades are broken, cracked, missing, or damaged
• Pulley is worn, bent, cracked, or misaligned
• Hydro belt slips, jumps, squeals, or wears unevenly
• Hydro drive area has vibration, wobble, or poor belt tracking
• Cooling airflow around the hydro drive system is reduced
• Your Exmark parts diagram lists part number 135-7347 for the repair

Installation and Service Notes

Before servicing hydro drive, fan, or pulley components, park the mower on a flat surface, disengage the blades, set the parking brake, shut the engine off, remove the key, and wait for all moving parts to stop.

• Allow hydro components to cool before service
• Take a photo of belt routing and fan orientation before disassembly
• Inspect the hydro belt, idlers, pulleys, fan guard, mounting hardware, shaft area, and nearby cooling fins
• Clean debris from the hydro drive cooling area during service
• Replace worn or damaged related parts as needed
• Confirm fan clearance, belt alignment, and pulley tracking before operating the mower
• Follow the Exmark service manual for your exact model and serial number

Part Number / Search Terms

• Exmark 135-7347
• Exmark 1357347
• 135-7347 hydro fan and pulley kit
• Exmark hydro fan kit
• Exmark pulley kit
• Exmark hydro pulley kit
• Radius hydro fan kit
• Radius pulley kit
• Exmark Radius fan pulley kit
• Exmark Radius hydro drive parts
• Exmark zero-turn hydro parts
• OEM Exmark Radius parts
• OEM Exmark mower parts

Frequently Asked Questions

P&P Small Engines stocks Exmark Radius parts, hydro drive parts, hydro fans, pulleys, belts, idlers, filters, blades, spindles, hardware, and commercial mower replacement parts.
