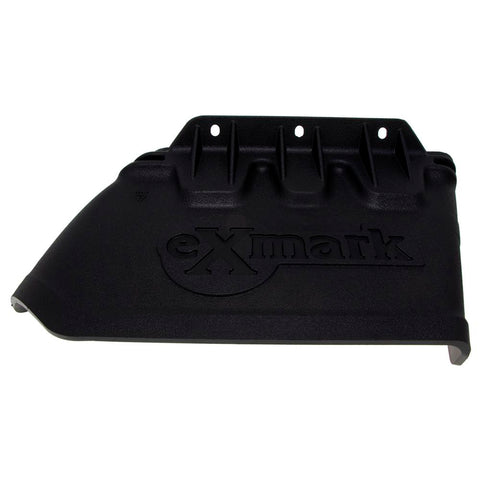

Exmark 109-2738 Discharge Chute

The Exmark 109-2738 Discharge Chute is an OEM replacement mower deck discharge chute used on select Exmark commercial mower and deck applications. This chute should be matched to your exact model number, serial number, mower deck, discharge opening, and Exmark parts diagram before ordering.

This part is commonly searched as Exmark 109-2738, Exmark discharge chute, 109-2738 chute, Exmark deck chute, Exmark mower deflector, Lazer Z discharge chute, Radius discharge chute, Turf Tracer discharge chute, and Vantage discharge chute.

Always verify your exact Exmark model number, serial number, deck size, discharge chute mounting style, hinge points, spring location, and parts diagram before ordering. Do not order by mower family or deck size alone because discharge chute fitment can vary by model, deck configuration, and serial range.

Product Details

Key Features

• OEM Exmark replacement discharge chute
• Part number 109-2738
• Used on select Exmark mower deck applications
• Helps direct grass discharge from the mower deck
• Important safety component for the mower deck discharge area
• Fits many listed Exmark commercial mower families and serial ranges
• Factory-style replacement when listed in your Exmark parts diagram

Fits Select Exmark Front Runner Decks

The supplied fitment list includes select Front Runner deck assemblies. Always verify the complete deck model and serial number before ordering.

Fits Select Exmark Lazer Z Models

This discharge chute is listed for many Exmark Lazer Z models across multiple serial ranges. Match your exact model and serial number to your parts manual.

Fits Select Pioneer, Quest, and Radius Models

Fits Select Staris, Turf Tracer, Vantage, and Vertex Models

Important Serial Number Notes

The supplied fitment data includes many serial ranges depending on the exact model, including older ranges such as 600000 - 999999, later ranges such as 312000000 - 420130746, and additional model-specific serial breaks. Always match your exact model and serial number to the correct Exmark parts diagram.

Important Fitment Notes

• This listing is for Exmark OEM part number 109-2738
• Product description: Discharge Chute
• Verify your exact mower or deck model number and serial number before ordering
• Confirm your Exmark parts diagram lists 109-2738 for the discharge chute / deck deflector location
• Check deck size, discharge opening, chute shape, hinge style, spring location, mounting holes, and related hardware
• Do not order by mower family, deck size, or appearance alone
• Mounting rod, spring, brackets, bolts, nuts, washers, guards, and related hardware are not included unless shown or stated

Safety Notes

• The discharge chute is an important mower deck safety component
• Do not operate the mower with a missing, damaged, or improperly installed discharge chute unless using an approved Exmark collection or mulch system designed for that deck
• Keep hands, feet, and bystanders away from the discharge opening
• Replace damaged chute components before returning the mower to service
• Always follow the Exmark operator and service manuals for your exact model

When to Replace a Discharge Chute

• Original chute is cracked, broken, missing, or worn out
• Chute no longer pivots or returns correctly
• Mounting holes, hinge points, or contact areas are damaged
• Grass discharge is no longer being directed properly
• Your Exmark parts diagram lists part number 109-2738 for the repair

Installation and Service Notes

Before servicing the discharge chute or mower deck, park the mower on a flat surface, disengage the blades, set the parking brake, shut the engine off, remove the key, and wait for all moving parts to stop.

• Inspect the chute mounting rod, spring, brackets, deck tabs, washers, and hardware during service
• Compare the replacement discharge chute to the original before installation
• Replace worn, bent, or missing mounting hardware as needed
• Confirm the chute moves freely and returns to the proper position before mowing
• Follow the Exmark service manual for your exact model and serial number

Part Number / Search Terms

• Exmark 109-2738
• Exmark 1092738
• 109-2738 discharge chute
• Exmark discharge chute
• Exmark deck chute
• Exmark mower chute
• Exmark deflector chute
• Exmark grass deflector
• Lazer Z discharge chute
• Radius discharge chute
• Pioneer discharge chute
• Quest discharge chute
• Staris discharge chute
• Turf Tracer discharge chute
• Vantage discharge chute
• Vertex discharge chute
• OEM Exmark chute
• OEM Exmark deck parts
• OEM Exmark mower parts
