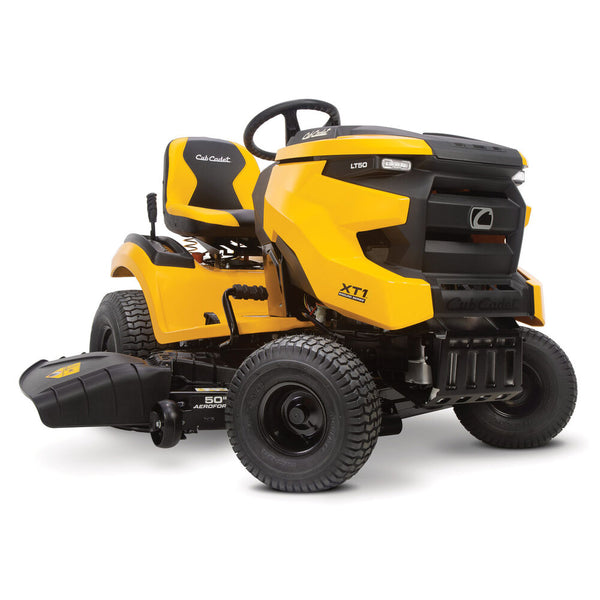

CUB CADET XT1-LT50 FAB 13AQA1TLA10
Product Number: 13AQA1TLA10
Store pickup or local delivery only
SET UP AND PREP FEES MAY APPLY
- The Cub Cadet XT1 LT50 FAB is powered by a 24 hp KOHLER 7000 Series twin cylinder engine.
- 50-inch fabricated, 11-gauge, triple-blade AeroForce(TM) deck design that optimizes airflow and maximizes suction to reduce clumping during discharge and improves bagging performance while delivering the pristine Cub Cadet Signature Cut(TM).
- Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
- 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours/limited lifetime fabricated deck shell.
- Ideal for mowing up 2-4 acres of mostly flat terrain and a few obstacles.
Engine
- Engine Brand: Kohler®
- Engine Model: KT735-3076
- Engine Displacement: 725cc
- Engine Output: 24 HP
- Fuel Tank Capacity: 3 gal.
- Cylinders/Material: Twin
- Engine Start: Key
- Engine Oil Capacity: 2 qt.
- Lubrication: Fully pressurized
- Battery: 12V 230 cold crank amps AGM
- Charging System: 12 amp regulated
- Fuel Gauge: Fuel sight window
- Governor: Manual
- Choke: Choke-a-matic
- Air Filter: Dual element
- Oil Filter: Yes
Drive System
- Transmission: Hydrostatic, foot
- Forward Speed: 5.5 MPH
- Reverse Speed: 3 MPH
- Rear Axle : 3/4" w/dual PM steel drive hubs
- Transmission Housing: Cast aluminum
- Transmission Type: Tuff Torq K46
- Engine to Transmission: Heavy-duty belt
Cutting Deck
- Deck Cutting Width: 50"
- Cutting Modes: Discharge/mulch/bagging
- Deck Wash: Yes
- Deck Material: Steel, 11-gauge
- Deck Attach/Removal: QuickAttach™ (no tools required)
- Deck Engagement (PTO): Electronic fingertip engagement
- Deck Construction: Fabricated
- Spindle Construction: 3/4" with steel cap and Triple Lip Sealed
- Blade(s): Triple Blades
- Deck Lift: Lever
- Cutting Height Range: 1" - 4"
- Anti-Scalping: 2 Ball/2 Ball/Nose Roller
- Deck Positions: 12-position
Chassis
- Frame: Fully robotically-welded frame with new e-coating corrosion defense system
- Front Axle(s): Cast iron
- Turning Radius: 16"
- Front Tires: 15" x 6" sleeve bearing
- Rear Tires: 20" x 8"
- Tire Tread: Turf Saver
- Bumper: Optional
- Rear Tow Hitch: Included
- Corrosion Protection: Yes
Controls
- Cruise Control: Included
- Brakes: Disc
- Steering Wheel Control: Manual sector and pinion
- Headlight(s): 2 - LED
- Display:
Comfort
- Seat Type: 15" high-back seat
- Seat Suspension: Seat spring
- Seat Adjustment: Lever
- Floor Mats: Rubber
Dimensions
- Dimensions: L/W/H 68"/60"/42.5"
- Weight (approx.): 500 lbs.
- Wheelbase: 47"
Additional Specifications
- Mulch Kit: Optional
- Discharge Chute: Included
- Cup Holder: Included
- Operator Presence System: Included
- Bagger: Optional
- Model Number: 13AQA1TLA10
Warranty
- Warranty: 3-year/unlimited hour warranty
- Frame Warranty: 5-year/unlimited hour warranty
- Front Axle Warranty: 5-year/unlimited hour warranty
- Deck Shell Warranty: Limited lifetime warranty
- AIR FILTER: 32 883 09-S1 OR 490-200-K054
- OIL FILTER: 12 050 01-S
- ENGINE OIL: 25 357 65-S OR 490-000-C044
- FUEL FILTER: 24 050 13-S
- TRANS FLUID: TT-187Q0899000
- SPARK PLUG: 25 132 23-S OR RC12YC
- DECK BELT: 954-04077A
- DRIVE BELT: 954-05027B OR 490-501-C061
- BLADES: 742P05094 OR SET 490-110-C193
- XTREME BLADE: 742P05094-X OR SET 490-110-C204
- IGNITION KEY: 925-1745A
