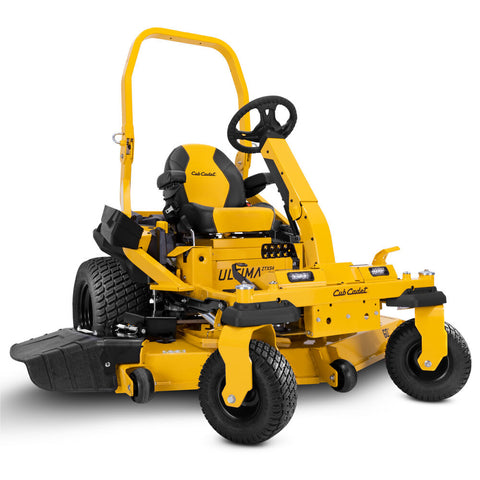

CUB CADET ULTIMA ZT2 50 17TIEAC2010
Product Number: 17TIEAC2010
Not Available Online, Please Contact Us.
STORE PICKUP OR LOCAL DELIVERY ONLY
- Premium 23 hp 726cc Kawasaki® FR 691 Series Twin-cylinder OHV Engine, Commercial-grade powerplant that meets your yard’s toughest demands.
- Ideal for mowing slight rolling hills and several obstacles up to 5 acres
- Open frame design and hinged/removable floor pan allow easy access to the deck and engine for quick and simple maintenance
- A heavy-duty 11-gauge 50-in. fabricated triple-blade (high lift) deck
Engine
- Engine Brand: Kawasaki®
- Engine Model: FR691V-ES05
- Engine Displacement: 726cc
- Engine Output: 23 HP
- Fuel Tank Capacity: 3.5 Gallon fuel tank capacity to keep you mowing and minimize time loss for refueling needs
- Engine Oil Capacity: 2.1 qt US
- Charging System: 15 amp regulated
- Choke: Separate Choke
- Battery: Standard Lead-Acid 12v
Drive System
- Transmission: Dual Hydro-Gear™ ZT-2800™ w/ oil reservoir and filter
- Forward Speed: 7.5 mph
- Reverse Speed: 3.5 mph
Cutting Deck
- Deck Cutting Width: 50" 3 blade
- Deck Wash: No
- Deck Material: 11-gauge fabricated steel, reinforced flat top
- Deck Engagement (PTO): Electronic fingertip blade engagement PTO
- Spindle Construction: Sealed cast aluminum housing (maintenance-free)
- Blade(s: ) 3
- Cutting Height Range: 1'' - 4.5''
- Deck Positions: Foot pedal with spring assist creates the perfect cut | 15 Positions
Chassis
- Frame: High-strength, continuous square 2'' x 2'' tubular steel frame with fully E-Coat lower frame
- Front Axle(s): Fixed 2" x 2.5" fully welded tubular steel axle (e-coated)
- Turning Radius: Zero degrees
- Front Tires: 13"x 6.5"-6" smooth tread front wheels pivot 180 degrees without turf damage
- Rear Tires: 20”x12”-8" Turf Master premium rear tires offer excellent traction, minimize turfing and provide a better ride on uneven ground at higher speeds
Controls
- Brakes: Integrated parking brake system in lap bars for ease of use
- Steering Control: 3-way adjustable ergonomic lap bar
- Headlight(s): Illuminating Dual-LED Headlights provide ultimate vision for mowing in low light conditions
- Mow in Reverse: Standard
- Hour Meter: yes
Comfort
- Seat Type: Automotive-inspired, ergonomic, fully adjustable premium 18'' high-back seat
- Seat Suspension: durable, advanced polymer seat suspension system optimizes comfort while reducing operators fatigue
Dimensions
- Dimensions: L/W/H 80'' x 61'' x 48''
- Weight (approx.): 600 lbs.
Additional Specifications
- Model Number: 17RIEACO010, 17RIEAC2010, 17TIEAC2010
Warranty
- Warranty: 3-year unlimited-hour warranty
- Frame Warranty: Limited lifetime warranty on frame and fabricated deck shell.
- AIR FILTER: KM-11013-0752 OR 490-200-C022
- OIL FILTER: KM-49065-0721 OR 490-201-C007
- ENGINE OIL: 490-000-C044
- FUEL FILTER: KM-49019-0027
- SPARK PLUG: KM-BPR4ES
- DECK BELT: 954-05078 OR 490-501-C070
- DRIVE BELT: 954-04317A OR 490-501-C069
- BLADES: 742P05094 OR 490-110-C193
- XTREME BLADE: 742P05094-X OR 490-110-C204
- IGNITION KEY: 925-1745A
- TRANS FILTER: HG-52114P
