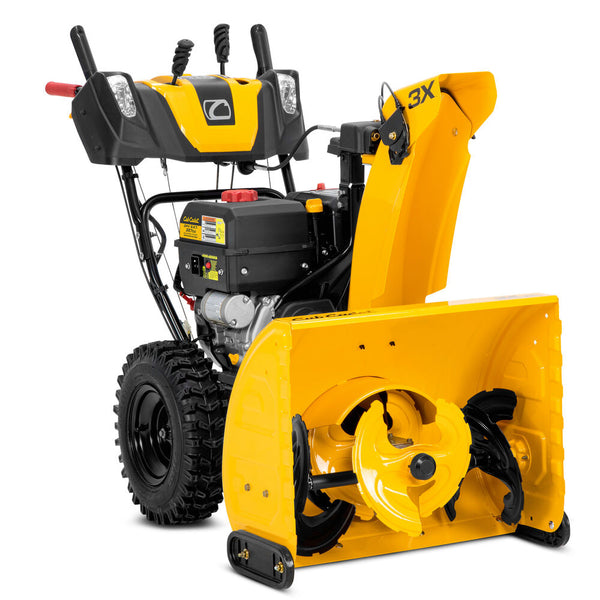

Cub Cadet 3X 26" 31AH5JVAB10
Product Number: 31AH5DVA710
Type: Snow Thrower
Brand: Cub Cadet
Store pickup or local delivery only.
The 3X three-stage snow blower is the first of its kind and a leader in the snow removal marketplace. First, the collection augers gather snow, ice and slush and move it all towards the center. Then, Cub Cadet's new high-volume accelerator cuts and chops winter's worst. Accelerating it right into the high-performance discharge impeller where it's thrown up and out of the high-impact chute.
Parts Diagram
Engine Diagram
Engine
- Engine Brand: Cub Cadet®
- Engine Model: 683-WUB OHV
- Engine Displacement: 357cc
- Starter Type: Electric and Recoil
- Fuel Tank Capacity: 5 qt.
- Engine Start: Standard (110 volt)
- Fuel Delivery: Carburetor
Warranty
- Auger Gearbox Warranty: 5-year limited auger gearbox
- Warranty: 3-year limited residential
- Commercial Warranty: 1-year limited commercial
- Disclaimer: See owners manual for warranty details and information. Certain restrictions apply.
Controls
- Handle Grip(s): Soft-Touch Heated Grips
- Pitch Control: Remote Single-Lever
- Chute Rotation: 200°
- Chute Control: Overhead Crank
- Single-Hand Operation: Standard
- Steering Control: Trigger-Controlled Power Steering
- Tire Size: 16" x 4.8"
- Drive Type: Friction Disc / X-Trac Tires
- Tread: X-TRAC™
Power and Performance
- Starting System: Push Button Electric Start (110 volt)
- Clearing Width: 26"
- Intake Height: 21"
- Auger Gear Box: Heavy-duty cast-aluminum
- Number of Stages: Three
Dimensions
- Auger Diameter: 12"
- Impeller Diameter: 12"
- Accelerator Diameter: 12"
Additional Specifications
- Headlight(s): Dual LED
- Shave Plate: Heavy Duty Steel
- Skid Shoes: COOL BLUE™ Reversible Poly
- Auger Material: Heavy-duty serrated steel
- Chute Material: Steel
- Model Number: 31AH5DVA710
Specifications
- Forward/Reverse Speeds: 6 forward / 2 reverse
