Brand: Ferris

 ********NO LONGER AVAILABLE********

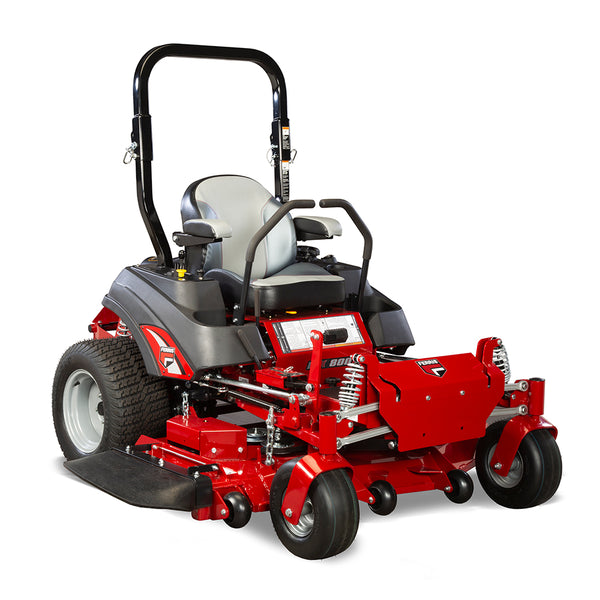

ISX™ 800 Zero Turn Mower

AFFORDABLE COMMERCIAL ZERO TURN WITH NEXT GENERATION FERRIS SUSPENSION TECHNOLOGY



Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 10 mph, the ISX™ 800 is engineered to increase efficiency and operator comfort.



Features

ForeFront™ Suspension System

The system utilizes four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Ride-On Mower Warranties



Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.



Integrated Transmission

Commercial Hydro-Gear® ZT-3400™ transaxles are designed for high performance and are fully serviceable.

Easy Access

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

iCD™ Cutting System

iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).

Mower Spindles

Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

Acres per Hour

Mows up to 5 acres per hour, based on 80% efficiency.

Miles per Hour

Up to 10 MPH ground speed, reverse 6 MPH.

Specifications


Model Number
5901746
Engine Brand
Kawasaki® FS730V
Engine Power Rating *
24
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5.5
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Aluminum
Deck Construction
iCD™ Cutting System
Suspension
ForeFront™ Suspension System - Front independent with four steel control rods for the ultimate in comfort and control
Transmission
Dual, Commercial Hydro-Gear ZT-3400®
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5 - 6
Drive Tires (in)
23 x 10.5 - 12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
65/57
Dry Weight (lbs)
1119
Seat Package
Premium adjustable seat with arm rests
Certified Roll-over Protection System
Standard, 180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Internal transaxles
Warranty (Balance of Machine) †
4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.

† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

DOWNLOAD 5901746 PARTS MANUAL
