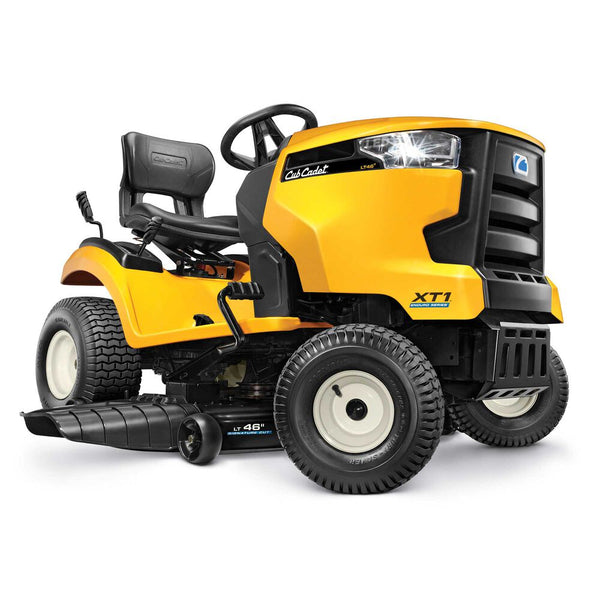

Cub Cadet XT1-LT 46 13APA9CT010 ********NO LONGER AVAILABLE********

Cub Cadet XT1-LT 46 13APA9CT010 ********NO LONGER AVAILABLE********

Product Number: 13AOA9CS010

Not Available Online, Please Contact Us.

Have Questions?

Our experts are here to answer your questions!

515-265-8889   Contact Us

Type: Non-Current Models
Brand: Cub Cadet

********NO LONGER AVAILABLE********

SET UP AND PREP FEES MAY APPLY
  • The Cub Cadet XT1 LT46 is powered by a 22 hp KOHLER 7000 Series twin cylinder engine.
  • 46-inch stamped, 12-gauge, twin-blade deck with 12 cutting positions.
  • Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
  • 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours.
  • Ideal for mowing up to 1.5 acres of mostly flat terrain and a few obstacles.



Engine





  • Engine Brand:  Kohler KT725-3078
  • Engine Displacement:  725cc
  • Fuel Tank Capacity:  3.0 gal.
  • Cylinders/Material:  Twin
  • Engine Start:  Key
  • Engine Oil Capacity:  2 qts.
  • Charging System:  12 amp regulated
  • Air Filter:  Single element
  • Oil Filter:  Yes



Battery
  • Battery:  12V 230 cold crank amps
  • Battery : Standard Lead Acid



Drive System
  • Transmission:  Hydrostatic, foot
  • Forward Speed:  5.5 MPH
  • Reverse Speed:  3.1 MPH
  • Rear Axle:  3/4" w/dual PM steel drive hubs
  • Transmission Housing:  Die-Cast Aluminum
  • Transmission Type:  Tuff Torq TL-200



Cutting Deck
  • Deck Cutting Width:  46"
  • Cutting Modes:  Discharge/mulch/bagging
  • Deck Wash:  Included
  • Deck Material:  Steel, 12-gauge
  • Deck Attach/Removal:  QuickAttach™ (no tools required)
  • Deck Engagement (PTO):  Manual lever
  • Deck Construction:  Stamped
  • Spindle Construction:  3/4" with steel cap and Triple Lip Sealed
  • Blade(s):  2
  • Deck Lift:  Lever
  • Cutting Height Range:  1" - 4"
  • Anti-Scalping:  2 ball, 2 narrow
  • Deck Positions:  12 positions



Warranty
  • Warranty:  3-year/unlimited hour warranty
  • Frame Warranty:  5-year/unlimited hour warranty
  • Front Axle Warranty:  5-year/unlimited hour warranty



Chassis
  • Frame:  Robotically welded
  • Front Axle:  Cast iron
  • Turning Radius:  16"
  • Rear Tow Hitch:  Included
  • Corrosion Protection:  E-coating



Controls
  • Cruise Control:  Included
  • Brakes:  Automotive-style disc
  • Steering Control:  Manual sector and pinion
  • Display:  Hour meter



Comfort
  • Seat Type:  15" high-back seat
  • Seat Suspension:  Seat spring
  • Arm Rests:  Seat Adjustment
  • Floor Mats Traction:  Pad



Additional Specifications
  • Mulch Kit:  Optional
  • Headlight(s):  2 - LED
  • Discharge Chute:  Included
  • Cup Holder:  Included
  • Operator Presence System:  Included
  • Bagger:  Optional
  • Model Number:  13APA9CT010
