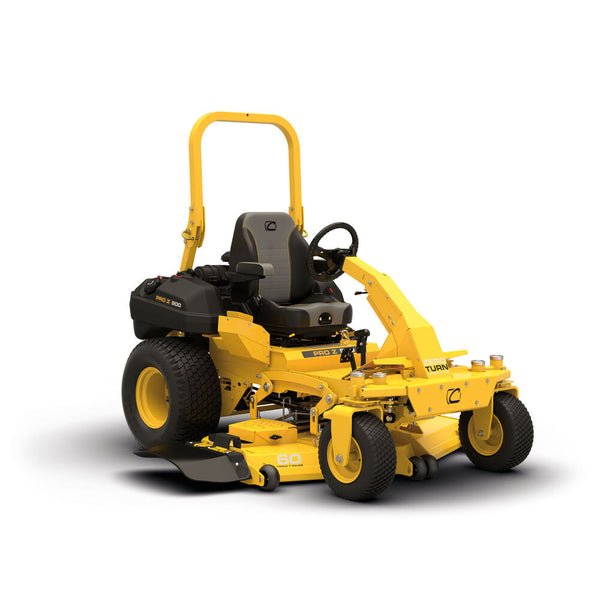

Cub Cadet Pro Z 960 S KW

Cub Cadet Pro Z 960 S KW

Product Number: 53TIHMUV050

Not Available Online, Please Contact Us.

Have Questions?

Our experts are here to answer your questions!

515-265-8889   Contact Us

Type: Non-Current Models
Brand: Cub Cadet
SET UP AND PREP FEES MAY APPLY
  • 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission



Engine



  • Engine Brand:  Kawasaki
  • Engine Model:  FXT00V-AS19
  • Engine Displacement:  999cc
  • Engine Output:  35 HP
  • Fuel Tank Capacity:  Twin 7.45 gal. tanks (14.9 gal. total) with electronic fuel gauge
  • Engine oil: 2 qts
  • Fuel Guage: electronic



Drive System
  • Transmission:  Parker HTG 16cc pump / 310cc wheel motor
  • Forward Speed;  14 mph
  • Reverse Speed:  6 mph



Cutting Deck
  • Deck Cutting Width:  60''
  • Deck Material:  fabricated 7ga. (.187”) steel shell
  • Deck Engagement (PTO):  electronic fingertip engagement pto
  • Deck Construction:  7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
  • Spindle Construction:  8" sealed cast aluminum housing (maintenance-free)
  • Blade(s):  Triple-blade / High-lift blade (standard) Marbain Blade
  • Cutting Height Range:  1" - 5"
  • Anti-Scalping:  2 Front
  • Deck Positions:  Foot pedal with spring assist, 16 Positions



Chassis
  • Frame:  Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
  • Front Axle(s):  2" x 3" solid axle tube with ISO dampening suspension
  • Front Tires:  15" x 6" - 6" smooth (run flat)
  • Rear Tires:  26" x 12" - 12" (Turf Tread)
  • Tire Tread:  Turf Tread
  • ROPS:  2" x 2" spring-latch tool-less foldable 3 position
  • Bumper : 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
  • Yokes:  1/2" thick steel front yokes



Controls
  • Brakes:  Hand-operated lever with integrated hydro pump release lever
  • Steering Wheel Control:  High Performance Steering Wheel with electronic power steering & Foot-pedal Control



Comfort
  • Seat Type:  Cushion with seat belts
  • Arm Rests:  Padded arm rests
  • Seat Suspension:  High-back Air-Ride suspension with EVC cushion, ISO mounted base (lateral suspension)
  • Seat Adjustment:  Angle back adjust and lumbar support



Dimensions
  • Dimensions:  L/W/H 88" L x 73" W x 48" H
  • Weight (approx.):  1580 lbs.



Additional Specifications
  • Hour Meter:  Crew Boss
  • Discharge Chute:  High-density, impact-resistant rubber
  • Cup Holder:  Intergrated into Side Pod
  • Model Number:  53TIHMTV050



Warranty
  • Deck Shell Warranty:  5 year / 1,750 hour limited deck construction warranty
  • Commercial Warranty:  3 year / no hour limit commercial warranty
