Cub Cadet Pro Z 160 S KW 53TIEFJU050 ********NO LONGER AVAILABLE********

Cub Cadet Pro Z 160 S KW 53TIEFJU050 ********NO LONGER AVAILABLE********

Product Number: 53TIEFJU050

Not Available Online, Please Contact Us.

Have Questions?

Our experts are here to answer your questions!

515-265-8889   Contact Us

Type: Non-Current Models
Brand: Cub Cadet

SET UP AND PREP FEES MAY APPLY

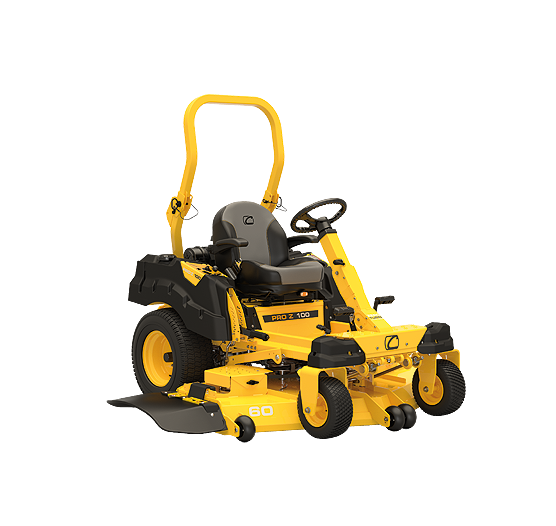

PRO Z 160 S KW



  • 23.5HP Kawasaki FX730v
  • 60-inch 10-gauge steel commercial deck with top, bottom and side reinforcements for added durability
  • 12cc commercial-grade transmission ensures optimal blade tip speed and superior quality of cut at speeds up to 9.5 mph



Engine
  • Engine Brand:  Kawasaki®
  • Engine Model:  FX730V-BS28
  • Engine Displacement:  726cc
  • Engine Output:  23.5HP
  • Fuel Tank Capacity:  Dual 3.5 gal. US (13.25 L)
  • Engine Start:  Ignition Key
  • Engine Oil Capacity:  2.0 qt. US (1.89 L)
  • Lubrication: Fully pressurized
  • Charging System:  15 amp regulated
  • Fuel Gauge:  No
  • Choke:  Separate Choke
  • Air Filter:  High Density
  • Oil Filter:  Yes



Drive System
  • Transmission:  12cc Hydro-Gear® ZT 3400 with charge pumps
  • Forward Speed:  9.5 mph
  • Reverse Speed:  4.5 mph


Cutting Deck
  • Deck Cutting Width:  60 in
  • Deck Engagement (PTO):  electronic fingertip engagement pto
  • Deck Construction:  Floating, fabricated 10ga. (.135”) steel shell (e-coated)
  • Spindle Construction:  5" sealed cast aluminum housing (maintenance-free)
  • Blade(s):  3 high-lift Marbain® blades / 18,500 fpm (approx.)
  • Cutting Height Range;  1” to 5” in 1/4” increments
  • Anti-Scalping:  4 Front HD w/ Bushings & Grease Zerk
  • Deck Positions:  Hand Lever / 15 position / spring assist



Warranty
  • Warranty:  4-year/500-hour limited residential warranty
  • Commercial Warranty:  2-year limited commercial warranty (no hour limitations)



Chassis
  • Frame:  Fully welded, full-legnth 12ga. channel frame with 14ga. reinforcements
  • Front Axle:  2" x 3" solid steel
  • ROPS:  2" x 2" quick-latch tool-less foldable 3 position
  • Bumper:  5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
  • Yokes:  3/8" thick steel with sealed ball bearing front yokes



Controls
  • Cruise Control:  Standard - Foot operated pedal engagement
  • Brakes:  Foot-operated pedal
  • Steering Control:  High Performance Steering Wheel with Foot-pedal Control



Comfort
  • Armrests:  adjustable arm rests
  • Seat Suspension:  High-back suspension



Dimensions
  • Dimensions:  L/W/H 80" L x 62" W x 48" H
  • Weight (approx.):  1000 lbs.



Additional Specifications
  • Hour Meter:  Basic Hour Meter (no tach)
  • Discharge Chute:  High-density, impact-resistant rubber
  • Cup Holder:  Intergrated into Side Pod
  • Model Number:  53TIEFJU050
