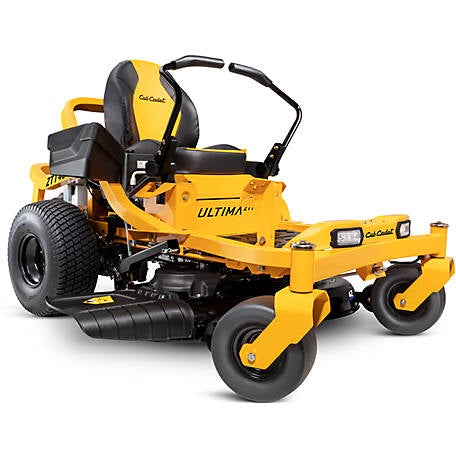

Cub Cadet ULTIMA ZT1 42 17TREACS010
Product Number: 17TREACS010
Not Available Online, Please Contact Us.
Type: Non-Current Models
Brand: Cub Cadet
SET UP AND PREP FEES MAY APPLY
FACTORY MODEL: 17TREACS010, 17AREACSA10
ULTIMA ZT1 42
- A 22 HP/725cc Kohler 7000 twin-cylinder OHV engine delivers high-performance power to tackle your yard
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
- A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear
- 42-in. steel cutting deck with smooth arc dual-blades, cut overlap and deep dome deck design provides flawless results, mows a wide area of grass to help reduce cutting time, is rust-resistant and provides your lawn with a clean-cut look
Engine
- Engine: Kohler KT725-3083
- Engine Displacement: 725cc
- Engine Output: 22 HP
- Fuel Tank Capacity: 3.5 Gallon fuel tank capacity to keep you mowing and minimize time loss for refueling needs
- Battery: 210 cca AGM
Drive System
- Transmission: Dual Hydro-Gear™ EZT-2200™
- Forward Speed: 7 mph
- Reverse Speed: 3.5 mph
Cutting Deck
- Deck Cutting Width: 42"
- Deck Wash: SmartJet deck wash system provides high pressure water that cleans out grass and debris build-up under the deck
- Deck Material: 13-gauge stamped steel
- Deck Engagement (PTO): Electronic fingertip blade engagement
- Spindle Construction: Sealed cast aluminum housing (maintenance-free)
- Blade(s): Twin Blades
- Cutting Height Range: 1'' - 4.5'' leads to a precise even cut
- Deck Positions: Foot pedal with spring assist creates the perfect cut | 15 Positions
Chassis
- Frame: 2'' x 2'' tubular steel frame with fully E-Coat lower frame and Triple Guard Corrosion Defense System™
- Front Axle(s): Fixed 2" x 2.5" fully welded tubular steel axle (e-coated)
- Turning Radius: Zero degrees
- Front Tires: 11"x 6"-5"
- Rear Tires: 20”x8”-8"
- Tire Tread: Turf Master
- Bumper: 2" x 2" Tubular steel bumper
- Rear Tow Hitch: Standard
- Corrosion Protection: Triple Guard Corrosion Defense System™
- Yokes: 1/4" steel yokes provide greater durability
Controls
- Cruise Control: N/A
- Handle Grip(s): Ergonomic lap bar
- Brakes: Integrated parking system in lap bars for ease of use
- Steering Wheel Control: 3-way adjustable ergonomic lap bar
- Headlight(s): Illuminating Dual-LED Headlights provide ultimate vision for mowing in low light conditions
- Mow in Reverse: Standard
Comfort
- Seat Type: Automotive-inspired, ergonomic, fully adjustable premium 18'' high-back seat
- Seat Suspension: Durable, advanced polymer seat suspension system
Dimensions
- Dimensions: L/W/H 80'' x 54'' x 47''
- Weight (approx.): 500 lbs.
Additional Specifications
- Mulch Kit: Optional
- Model Number: 17TREACS010 OR 17AREACSA10
- Hour Meter: No
Warranty
- Warranty: 3-year / unlimited-hour warranty. limited lifetime warranty on frame. Lifetime limited on deck shell. No commercial warranty
- AIR FILTER: 32 883 09-S1 OR 490-200-K054
- OIL FILTER: 12 050 01-S
- OIL: 490-000-C044
- FUEL FILTER: 25 050 22-S1
- SPARK PLUG: 25 132 23-S RC12YC
- DECK BELT : 754P06134 OR 490-501-C081
- DRIVE BELT: 954-04317A OR 490-501-C069
- BLADES: 742P05528
- XTREME BLADES: 742P05177A-X OR 490-110-C202
- IGNITION KEY: 925-1745A
- HOUR METER KIT: 490-900-C075
