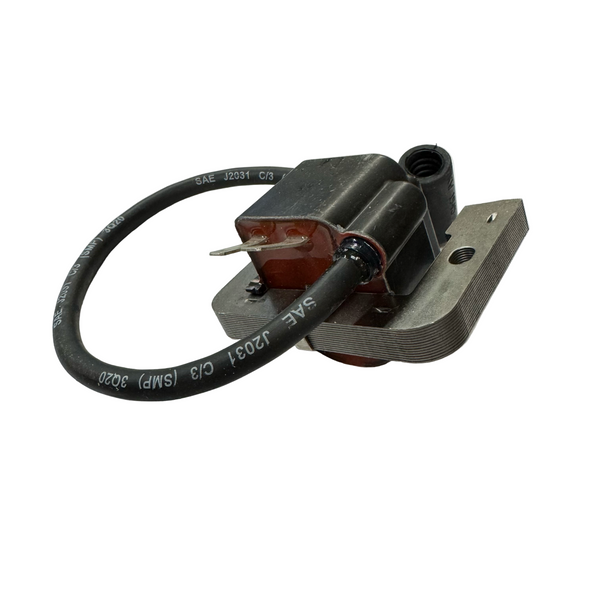

Kohler Engine 24 584 36-S - MODULE,IGNITION

MODULE, IGNITION

KOHLER ENGINES:

NEED TO LOOK UP MY SPEC NUMBER

CH22-CH25

CH730-CH750

CV18, CV22-CV25

CV724, CV725, CV740, CV750

SV710, SV730, SV735, SV740, SV840

CH/CV25 Engines: with Speed Advance Module 24 584 09-S or 24 584 10-S only (ASAM Ignition). Use the 24 584 36-S ignition modules (2 spade terminals) as required. DO NOT CONVERT to newer DSAM/DSAI (digital) Ignition systems with kit or interchanged parts as operating/performance problems will occur.

CH/CV/SV740 Engines: Identify module required by ignition system used:
DSAM ignition: (A speed advance module & 2-terminal ignition modules). If ignition modules(s) only are required order 24 584 36-S.
DSAI ignition: If the engine DOES NOT have a speed advance module and contains 3-wire ignition coils, the system is a DSAI Ignition System. Use the 24 584 89-S ignition modules (3 terminals)

CH/CV750 Engines: Identify module required by ignition system used:
DSAM ignition: (A Speed advance module & 2-terminal ignition modules). If ignition modules(s) only are required order 24 584 36-S.
DSAI ignition: If the engine DOES NOT have a speed advance module and contains 3-wire ignition coi
