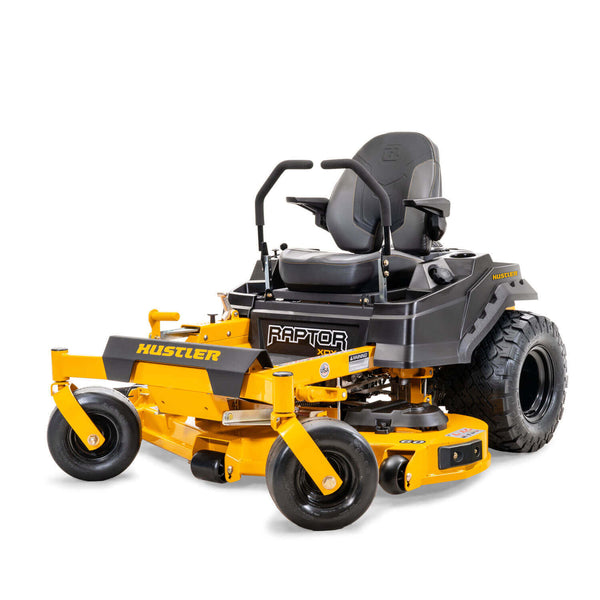

Hustler XDX 54" 939835

STORE PICKUP OR LOCAL DELIVERY ONLY

The Raptor XDX is at the top of the residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and toolless removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck allows the XDX to mow through thick grass at top speeds. The heavy-duty XDX is backed by an industry leading 3yr / 300hr warranty and 1yr / 300hr commercial warranty.

22" BigBite™ Tires

More aggressive tire to handle tough jobs.

Extra High-back Seat

A premium extra high-back seat with armrests.

Commercial Grade Deck

Heavy-duty 11 gauge steel and front bull nose bumper design for unmatched durability. Up to 60” deck sizes available.



Engine Manufacturer: Kawasaki FR691

Engine Horsepower: 23

Transmission: Hydro-Gear ZT-3100™

Fuel Capacity: 3 gal.

Ground Speed (FWD): Up to 8 mph

Cutting Width: 54"

Cutting Height: 1.5" to 4.5"

Deck Depth: 5"

Deck Lift: Foot Operated

Number of Blades: 3

Blade Tip Speed: 18,900

Spindles: Aluminum with 1" shaft and sealed ball bearings

Deck Engagement: Electric PTO Clutch

Deck Material: Fabricated 10 gauge

Spindle Mounts: Reinforced 11 gauge

IMPACT Trim Area: 11 gauge formed channel with rolled edge

Front Tire: 13 x 6.5

Drive Tire: 23 x 11-10 BigBite™

Warranty: 3 Year/300 hour residential or 1 Year/300 hour commercial

Engine Warranty: 3 Year Warranty

Frame: 1.50" X 3" steel tubing

Front Axle: Fabricated with sealed ball bearings

Front Caster Wheel: Tapered roller bearings - grease-able

Front Caster Fork: Fabricated 3/8" steel

Weight (lbs): 678
