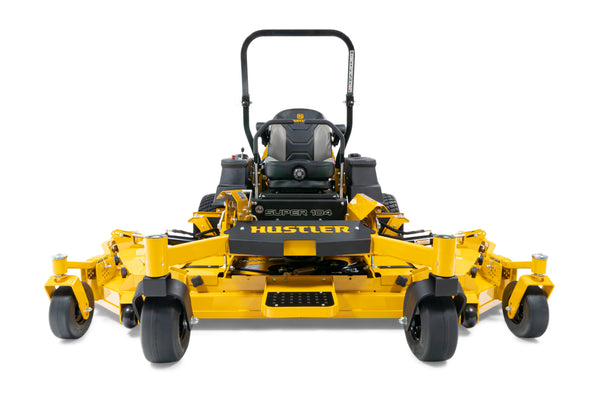

Hustler Super 104 943225
Product Number: 943225
Not Available Online, Please Contact Us.
STORE PICKUP OR LOCAL DELIVERY ONLY
Hustler's Super 104™ can easily handle acres of work. Offering a 104" width of cut, zero-turn precision and an impressive 11 mph speed, this machine is in a class by itself.
WARRANTY:
2YEAR NO HOUR LIMIT
5YEAR 500 HOUR
| Zero-Turn Configuration | 104" Rear Discharge Vanguard Big Block EFI | ||
|---|---|---|---|
| Manufacturer | Vanguard | ||
| HP (Per SAE J 1995.) | 37HP | ||
| Displacement | 993cc | ||
| Cooling | Air Cooled | ||
| Air Cleaner | Heavy-Duty Canister | ||
| Engine Warranty | 5 Year - Vanguard Only |
Drive System
| Zero-Turn Configuration | 104" Rear Discharge Vanguard Big Block EFI | ||
|---|---|---|---|
| Type | Dual Hydrostatic | ||
| Pumps | Danfoss DDC20 | ||
| Wheel Motors | Parker TG0360 | ||
| Hydraulic Lines | Stainless Steel Parker Seal Loc Technology | ||
| Hydraulic Cooling | Oil Cooler w/ 9" Fan | ||
| Reservoir Capacity | 3 gal. | ||
| Transmission | n/a | ||
| Speed | Up to 11 mph | ||
| Parking Brakes | Patented Automatic |
Decks
| Zero-Turn Configuration | 104" Rear Discharge Vanguard Big Block EFI | ||
|---|---|---|---|
| Cutting Width | 104" | ||
| Cutting Heights | 1" - 5.5" | ||
| Deck Lift | Hydraulic Powered | ||
| Depth | 5.5" | ||
| Blades | 5 | ||
| Blade Length | 1 - 23.86"" x 2.50"" x .203"" CW\ 1 - 23.86"" x 2.50"" x .203"" CCW 1 - 20.50"" x 2.50"" x .203"" CCW 2 - 20.50"" x 2.50"" x .203"" CW |
||
| Blade Tip Speed | 15,800 fpm | ||
| Spindles | Ductile Cast Iron w/ Steel Shafts and Sealed Ball Bearings | ||
| Deck Belts | 1 Per Deck | ||
| Drive | Electric PTO Clutch | ||
| Construction | 11ga. Welded Steel | ||
| Spindle Mounts | Reinforced 7ga. Doubler | ||
| Impact/Trim Areas | 1.5" x .375" Steel Bar Protector |
Construction
| Zero-Turn Configuration | 104" Rear Discharge Vanguard Big Block EFI | ||
|---|---|---|---|
| Frame | 1.5" x 3.0" x .188" Steel | ||
| Deck Carrier Frame | n/a | ||
| Engine/Transmission Frame | n/a | ||
| Engine Plate | n/a | ||
| Front Axle | n/a | ||
| Front Caster Wheels | Mounted tapered greasable bearings | ||
| Front Caster Forks | Fabricated 1/2" Steel | ||
| Operator Platform | n/a |
General
| Zero-Turn Configuration | 104" Rear Discharge Vanguard Big Block EFI | ||
|---|---|---|---|
| Seat | Grammer Suspension Seat, Isolator Platform | ||
| Fuel Capacity | 12 gal. | ||
| Cup Holder | Yes | ||
| Front Tire | 15 x 6.0 - 6 | ||
| Drive Tire | 26 x 12 - 12 |
Productivity
| Zero-Turn Configuration | 104" Rear Discharge Vanguard Big Block EFI | ||
|---|---|---|---|
| Acres per Hour | 9.24 |
Dimensions
| Zero-Turn Configuration | 104" Rear Discharge Vanguard Big Block EFI | ||
|---|---|---|---|
| Weight | 2500 lbs. | ||
| Height | n/a | ||
| Height w/ ROPS Up | 71.5" | ||
| Height w/ ROPS Folded | 54" | ||
| Length | 95.5" | ||
| Width | 106.1"" Wings Down 80.0"" Wings Up at Gauge Wheels 72.5"" Wings Up at Deck Base |
||
| Width w/ Chute Up | n/a | ||
| Tire Width |
60.3" |
