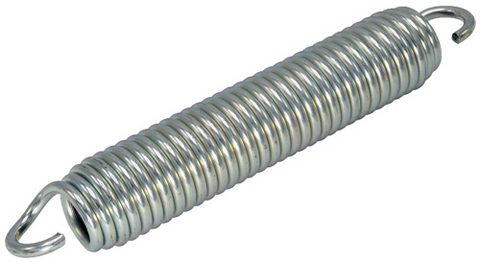

Hustler 601016 Idler Spring | OEM Drive Belt Tensioner Spring

Hustler 601016 OEM Idler Spring

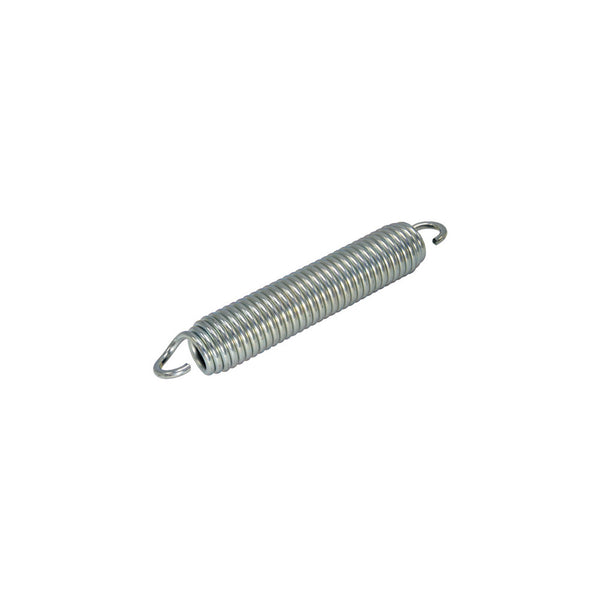

The Hustler 601016 Idler Spring is a genuine OEM Hustler replacement spring used on select Hustler mower belt and idler applications. This part is commonly found as a drive belt tensioner spring, idler pulley spring, or belt tension spring depending on the mower model and parts diagram.

The idler spring helps maintain proper belt tension in the mower drive or deck belt system where specified. A stretched, weak, broken, missing, or incorrect spring can cause belt slipping, poor drive engagement, belt jumping, uneven belt wear, noise, or premature pulley and belt failure.

Always verify your full Hustler model number, serial number, original spring part number, belt routing, idler arm location, and parts diagram before ordering. Spring fitment can vary by mower model, deck size, drive system, serial range, and production version.

Product Details

Compatible Hustler Model References

Hustler 601016 is listed across a wide range of Hustler parts manual references. Your where-used list includes multiple Hustler mower families, including:

• Hustler Z
• Hustler XR-7 Super Z
• Hustler Super Z
• Hustler Super Z HyperDrive
• Hustler Super Z HD
• Hustler ATZ
• Hustler XR-7 ATZ
• Hustler X-ONE
• Hustler Diesel Z
• Hustler Super 104
• Hustler Super 88
• Hustler Super SF
• Hustler X-RIDE
• Hustler Z4
• Hustler 1500 Greens Mower
• Other Hustler drive belt, deck belt, and idler applications where part 601016 is specified

Important: This is a broad where-used reference list. Always confirm your exact Hustler model number, serial number, belt system, idler arm location, and parts manual list 601016 before ordering.

Key Features

• Genuine OEM Hustler idler spring
• Part number 601016
• Commonly found as a drive belt tensioner spring
• Also searched as an idler pulley spring, belt tension spring, or idler arm spring
• Used on select Hustler belt and idler system applications
• Helps maintain proper belt tension where specified
• Helps reduce belt slip, belt jump, and premature belt wear
• Factory-correct replacement when listed in your Hustler parts manual

Why Choose an OEM Hustler Idler Spring?

Belt tension springs are small parts, but they play an important role in the mower’s drive and deck belt systems. The spring must match the correct length, tension, hook style, and idler arm setup. Using the wrong spring can cause poor belt tension, incorrect pulley movement, belt slippage, or repeated belt failure.

Genuine Hustler OEM parts are designed to match the original equipment requirements of compatible Hustler mowers. When your parts manual lists 601016, this OEM idler spring is the correct replacement for that application.

• Correct OEM fit when specified by Hustler
• Designed for compatible Hustler idler and belt systems
• Helps maintain correct belt tension
• Helps support proper idler arm movement
• Reduces guesswork compared to universal replacement springs

When to Replace an Idler Spring

Replace or inspect the idler spring if it is stretched, weak, broken, missing, rusty, or no longer holding proper belt tension. A weak spring can cause belt problems even if the belt and pulleys look good.

• Drive belt or deck belt slips
• Belt jumps off the pulley system
• Spring is stretched, weak, or broken
• Idler arm does not keep proper tension
• Belt squeals, chatters, or wears unevenly
• Spring hooks are worn, bent, or damaged
• Idler pulley or belt service is being performed
• Parts manual lists Hustler 601016 for your mower

Important Fitment Notes

• This is an OEM Hustler idler spring
• Commonly used as a drive belt tensioner spring where specified
• Verify your model and serial number before ordering
• Confirm belt routing, idler arm location, spring hook points, and parts diagram
• Do not order by mower series or deck size alone
• Inspect the belt, idler pulley, idler arm, bushings, bearings, and mounting hardware during replacement

Pre-Purchase Checklist

Before ordering Hustler 601016, confirm:

• Your full Hustler model number
• Your mower serial number
• Your original idler spring part number
• Your parts manual lists 601016
• Your belt routing matches the parts diagram
• Your spring hooks and idler arm mounting points match the original setup
• Your related belt, pulleys, idlers, and hardware are in serviceable condition

Installation and Service Notes

Idler spring replacement should be performed with the mower turned off, key removed, parking brake engaged, and all moving parts stopped. Springs can be under tension, so use caution during removal and installation.

• Take a photo of the belt routing and spring location before disassembly
• Use the correct spring hook points shown in the parts diagram
• Inspect the idler arm for free movement and wear
• Inspect the idler pulley bearing for noise or roughness
• Replace worn belts, pulleys, bushings, or hardware as needed
• Verify belt tracking and tension after installation
• Run the mower and recheck for belt noise, slip, or misalignment before returning to service

Part Number / Search Terms

Hustler 601016 may also be searched as:

• Hustler 601016
• 601016 idler spring
• Hustler 601016 spring
• Hustler idler spring
• Hustler drive belt tensioner spring
• Hustler belt tensioner spring
• Hustler belt tension spring
• Hustler idler pulley spring
• Hustler idler arm spring
• Hustler mower spring 601016
• Hustler Super Z idler spring
• Hustler Super Z HyperDrive idler spring
• Hustler X-ONE idler spring
• Hustler Diesel Z idler spring
• Hustler Super 104 idler spring
• Hustler OEM idler spring
• Hustler replacement drive belt spring
