Ferris IS700 BS2752 5902107

Ferris IS700 BS2752 5902107

Product Number: 5902107

Not Available Online, Please Contact Us.

Have Questions?

Our experts are here to answer your questions!

515-265-8889   Contact Us

Type: Zero-Turn
Brand: Ferris



STORE PICKUP OR LOCAL DELIVERY ONLY

SET UP AND PREP FEES MAY APPLY

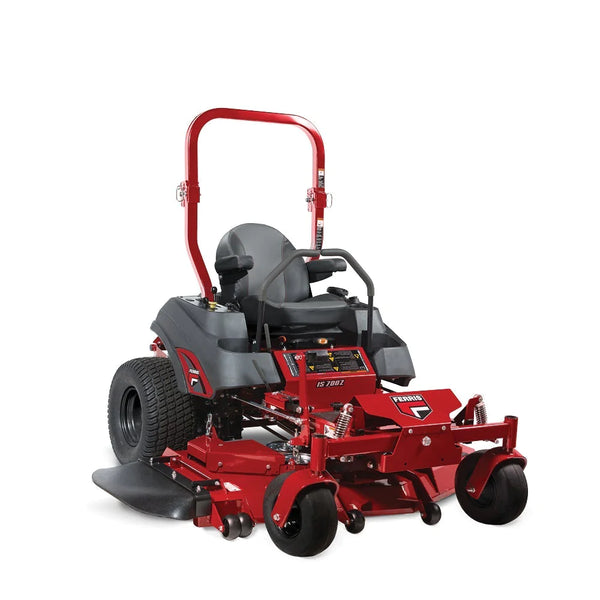

IS® 700 Zero Turn Mower

COMMERCIAL COMPONENTS AT AN AMAZING VALUE FOR LANDSCAPERS AND LARGE PROPERTY OWNERS

Mow more lawn in less time. The IS® 700 Series, with up to five feet of cutting width, features our patented suspension technology, iCD™ Cutting System, heavy-duty Hydro-Gear ZT-3200® drive system, and a top speed of 10 mph. This mower is full of features to improve the quality of cut and increase productivity and comfort.



Features

Patented Suspension

Pivoting front axle plus small shocks and medium rear shocks allow the wheels to follow the ground and improve comfort in a wide variety of conditions.

Exceptional Performance

The well-tuned steering system delivers smooth and confident operation for excellent performance time after time.

Integrated Transmissions

Commercial Hydro-Gear® ZT-3200™ transaxles are designed for high performance and are fully serviceable.

Easy Access

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

iCD™ Cutting System

The iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. Every component works together to achieve superior cut quality and longer component life.

Mower Spindles

Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

Heavy-Duty Bumper

Heavy-duty bumper protects the engine while also allowing for easy service access.

Ride-On Mower Warranties†

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Acres Per Hour

Mows up to 5 acres per hour, based on 80% efficiency.

Miles Per Hour

Up to 10 MPH ground speed, reverse 5 MPH.



Engine Brand
Briggs & Stratton® CXi
Engine Power Rating *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
5.5
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™ Cutting System
Suspension
Adjustable front and rear coil-over-shocks with pivoting front axle and a rear swing-arm with large adjustable coil-over-shocks
Transmission
Dual, commercial Hydro-Gear ZT-3200® Transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 X 6.5-6
Drive Tires (in)
22 X 11-10
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
65/57
Dry Weight (lbs)
1059
Seat Package
Mid-back suspension seat with arm rests
Certified Roll-over Protection System
Standard, 180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Internal transaxles
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Mower Deck Warranty
3-Year limited manufacturer's warranty

    Illustrated Parts List

    Wiring Diagram Schematic





Attachments:



Turbo-Pro™ Double Bag Hard Top Collection System 5600780



Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal.
Capacity: 10 cubic feet. Fits 52" and 61" models.





Mulch Kit 5600584



Select kits include dedicated mulching blades, baffels, hardware and instruction sheet.





Trailer Hitch Kit 5600031



Will accept a 1/2” shank ball and comes complete with hardware.





Striping Kit 5600957



Rubber flap lays down grass to create patterns across the landscape.





Premium Seat



High quality adjustable seat features red trim with adjustable arm rests for added comfort.





Flat-Free Caster Tires 5109903



Run all day with no flats, eliminates down time.





LED Light Kit 5600891



Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.

AIR FILTER:
OIL FILTER:
FUEL FILTER:
SPARK PLUG:
PTO BELT:
DECK BELT:
DRIVE BELT:
TRANS FILTER:
BLADES:
XTREME BLADES: N/A
IGNITION KEY:
ENGINE OIL:







Service Jack 5601080, Mount 5601078 Need Both



Heavy-duty steel braket and jack allows for easy and convenient access under the deck.
