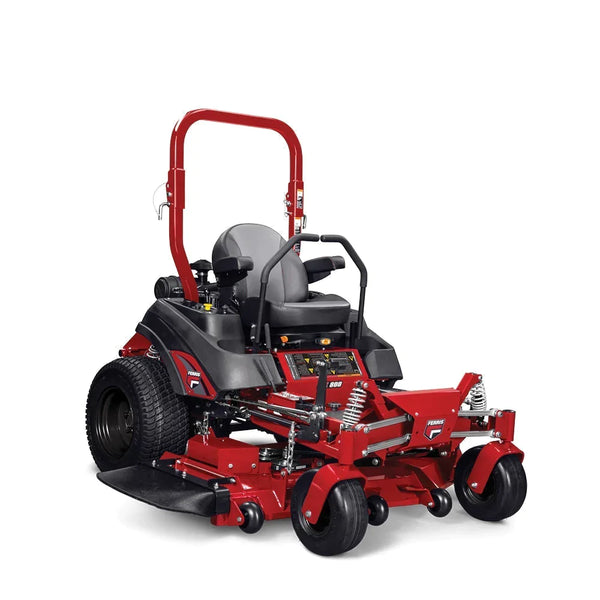

ISX™ 800 Zero Turn Mower

AFFORDABLE COMMERCIAL ZERO TURN WITH NEXT GENERATION FERRIS SUSPENSION TECHNOLOGY

The ISX™ 800 is engineered to increase efficiency and comfort. Combining next-generation Ferris® technology - ForeFront™ Suspension with a 2-belt iCD™ Cutting System, means a smoother ride and improved cut.







Features

ForeFront™ Suspension System

The system utilizes four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Integrated Transmission

Commercial Hydro-Gear® ZT-3400™ transaxles, with 7" cooling fans, are designed for high performance and are fully serviceable.

Easy Access

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

iCD™ Cutting System

iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).

Mower Spindles

Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

Ride-On Mower Warranties



Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.



Miles per Hour

Up to 10 MPH ground speed, reverse 5 MPH.





Engine Brand
Kawasaki® FT730V - EFI
Engine Power Rating *
26
Displacement (cc)
726
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
6
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Cutting Width (in)
60
Cutting Height (in)
1.5 - 5
Spindles
Aluminum Greaseable
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Deck Construction
iCD™ Cutting System, 2-Belt
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-5
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0 - 10
Ground Speed-Rev (mph)
0 - 5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
74 / 65
Dry Weight (lbs)
1268
Seat Package
Mid-back suspension seat with arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year Limited Manufacturer's Warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Starter
Electric
Engine Configuration
Kawasaki®
Engine Fuel Type
Gasoline

Illustrated Parts List

Wiring Diagram Schematic





Attachments



Turbo-Pro™ Double Bag Hard Top Collection System



Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal.
Capacity: 10 cubic feet. Fits 52" models.





Turbo-Pro™ Triple Bag Hard Top Collection System 5601414



Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal. Capacity: 15 cubic feet. Fits 52" and 61" models.





Trailer Hitch Kit 5600031



Will accept a 1/2” shank ball and comes complete with hardware.





Service Jack 5601080, Mount 5601078 Need Both



Heavy-duty steel bracket and jack allows for easy and convenient access under the deck.





LED Light Kit 5600891



Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.





Mulch Kit 5601441



Select kits include dedicated mulching blades, baffels, hardware and instruction sheet.





Flat-Free Caster Tires 5109903



Eliminate downtime by running all-day with flat-free caster tires. Comes standard on select models.





Lawn Striping Kit 5601385



Rubber flap system lays down clippings to create eye catching grass patterns across the landscape.
