Ferris SRSZ2BVE2852 5901948

Product Number: 5901948

Not Available Online, Please Contact Us.

Have Questions?

Our experts are here to answer your questions!

515-265-8889   Contact Us

Type: Stand-On
Brand: Ferris



STORE PICKUP OR LOCAL DELIVERY ONLY

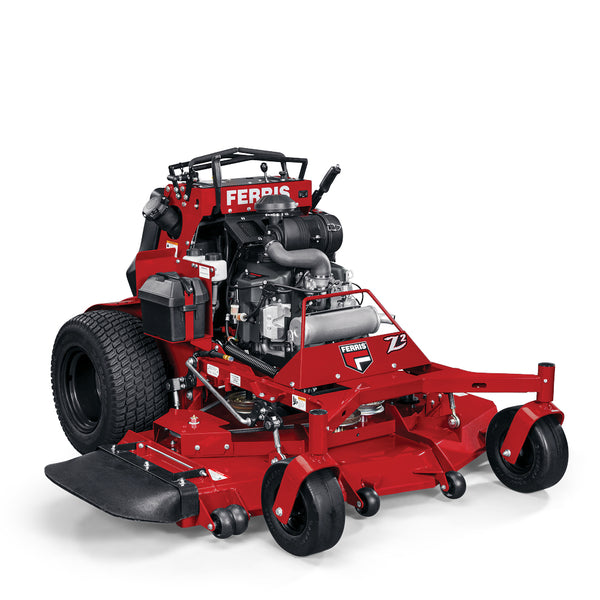

SRS™ Z2 Soft Ride Stand-On Mowers

A COMBINATION OF SPEED, AGILITY AND HIGH QUALITY OF CUT

The Soft Ride Stand-On SRS™ Z2 features our adjustable operator platform with suspension technology that optimizes operator comfort and increases productivity without sacrificing quality-of-cut. The superior balance on the Z2 provides excellent stability and maneuverability that exceeds expectations for traction and handling.







Specifications

Model Number
5901948
US MSRP ^
$12,199.00
Engine Brand
Vanguard™ 810 EFI with Oil Guard
Engine Power Rating (hp) *
28
Starter
Electric
Displacement (cc)
810
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
8
Deck Construction
iCD™ Cutting System
Cutting Width (in)
52
Cutting Height (in)
1.75 - 5
Spindles
Aluminum Greaseable
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Transmission
Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7" cooling fans and oil coolers
Drive Axles (in)
1.125
Drive Tires (in)
23 x 10.5-12
Caster Tires (in)
13 x 5-6, Flat-free
Ground Speed-Fwd (mph)
0 - 10
Ground Speed-Rev (mph)
0 - 5
Overall Length (in)
67
Overall Width (in) Deflector Down/Deflector Up
65 / 54.75
Dry Weight (lbs)
938
Seat Package
N/A
Certified Roll-over Protection System
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Hand operated; Internal transaxle brake
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details.
Warranty (Engine) †
3-Year limited manufacturer's warranty

 Illustrated Parts List

Wiring Diagram Schematic





Features

a red car with a black box
Suspension Platform System

The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.

label
500 Hour Oil Change (Select Models)

Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

a red tractor with a black seat
Fuel Capacity

Generous 8-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.

a black and silver camera
Vanguard™ 810cc EFI engines



Vanguard™ 810cc engines deliver the optimum power, performance and efficiency commercial zero-turn mowers need.



a close-up of a computer part
Speed Control Setting

The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.

a red and black tractor
Standing Comfort

Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.

a close-up of a car engine
Adjustable Height of Cut

Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 5".

a black camera with a lens
Integrated Mowing Transmissions

Commercial Hydro-Gear® ZT-3800® transaxles are designed for high performance and are fully serviceable.

logo, company name
iCD™ Cutting System

Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

a red sign with white text
Ride-On Mower Warranties†

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour s



Attachments





a close-up of a magnifying glass
LED LIGHT KIT 5601010



Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.





a pair of sunglasses
Mulch Kit 5600584



Kit includes dedicated mulching blades, baffles, hardware and instructions.





a black and silver knife
Striping Kit 5600957



Rubber flap lays down grass to create patterns across the landscape. Fits 48" model.





a black and white camera
Flat-Free Caster Tires 5023280



Eliminate downtime by running all-day with flat-free caster tires.





luggage & bags
Metal Grass Catcher 5105073 & 5105070 NEED BOTH



Rugged steel-framed catcher has handles that make attaching and removing a breeze. Capacity: 3.5 bushels. Fits 52" model.







ervice interval.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
